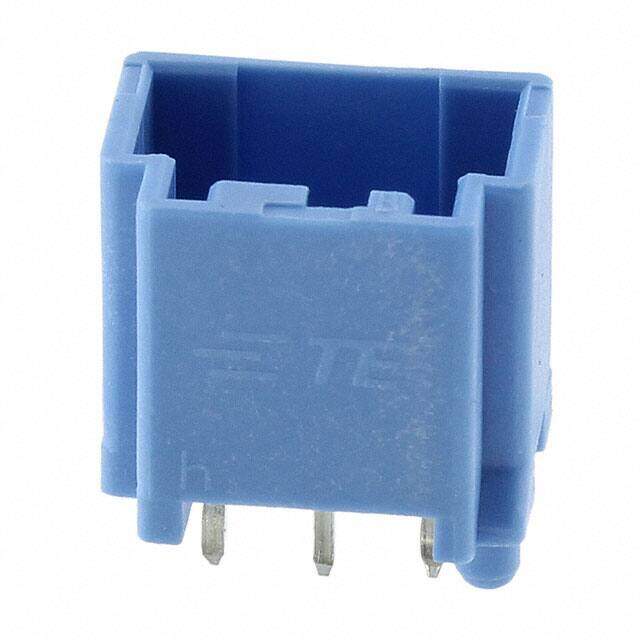

3-1971800-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings GI CONN 2.5 HDR 3P BLUE
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.18304
≥100 USD $0.166672
≥500 USD $0.12936
≥1000 USD $0.120234
≥3000 USD $0.106542
Inventory: 2982
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Nylon
PCB Mounting Orientation Vertical
PCB Mount Retention With
Underplate Material Nickel
PCB Mount Alignment With
Technical
Operating Temperature -30°C~105°C
Packaging Bulk
Published 2012
Series Grace Inertia, GIC
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 3
Max Operating Temperature 221°C
Min Operating Temperature -22°C
Color Blue
Applications General Purpose
Number of Rows 1
Voltage - Rated 50V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Pitch 2.5mm
Orientation Vertical
Insulation Height 0.346 8.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.098 2.50mm
Insulation Color Blue
Shrouding Shrouded - 4 Wall
Number of Contacts 3
Contact Finish - Post Tin
Contact Gender Male
Housing Color Blue
Operating Supply Voltage 50V
Contact Style Straight
ELV Compliant
Plating Tin
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 22 AWG
Sealable No
Contact Current Rating 3A
Mating Retention With
Dimensions
Height 7.38mm
Length 10mm
Plating Thickness 2μm
Contact Finish Thickness - Mating 2μm
Length - Tail 3mm
PCB Thickness 2mm
Width - Tab 500.38μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
