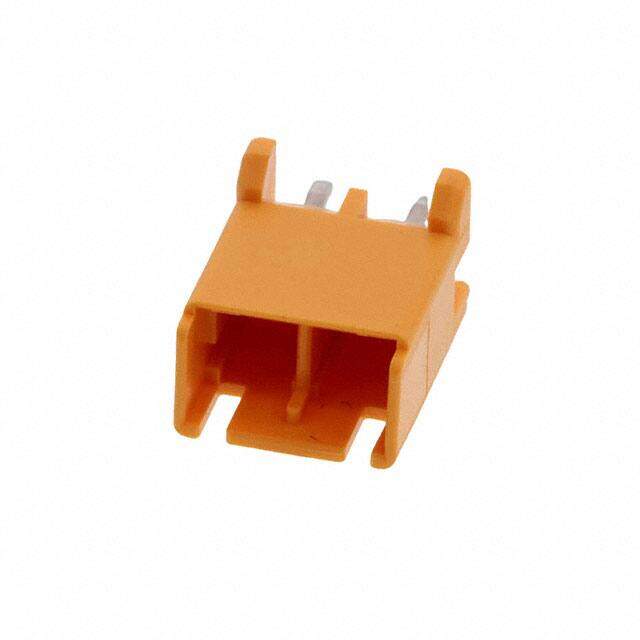

3-1376382-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
5MM B-T-W CONN. 2P HDR ASSEMBL
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.55352
≥100 USD $0.446468
≥500 USD $0.346482
≥1000 USD $0.302298
≥3000 USD $0.287795
Inventory: 15795
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.57mm
Stack Height (Mating) 19.4mm
Plating Thickness 39.36μm
Width 14.097mm
Length 11.6mm
Height 13.97mm
Technical
Contact Retention Without
Mating Post Length 6.2992mm
Number of Power Positions 2
Circuit Application Power
Contact Current Rating 10A
Sealable No
Insertion Force-Max 9.7856 N
ELV Compliant
Insulation Resistance 500000000Ohm
Operating Supply Voltage 300V
Body Depth 0.555 inch
Empty Shell NO
Housing Color Yellow
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.197 5.00mm
Current Rating 10A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.555 14.10mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Tab
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
HTS Code 8536.69.40.30
Voltage - Rated 300VAC
Gender Male
Number of Rows 1
Applications General Purpose
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Power Key
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Rectangular
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
