292253-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

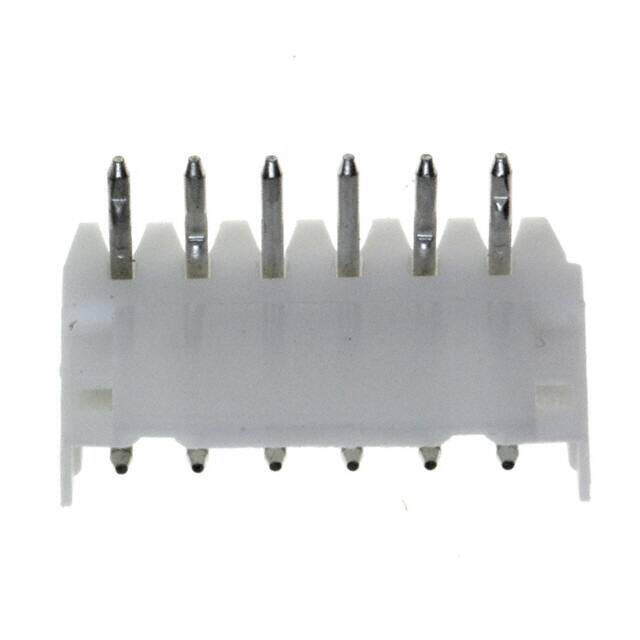

CONN HEADER 6POS R/A 2MM T/H TIN
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.4752
≥100 USD $0.383328
≥500 USD $0.351454
Inventory: 10303
Minimum: 1
-
+
Technical Details
Technical
Connector Type Header
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose
Number of Rows 1
Fastening Type Detent Lock
Voltage - Rated DC 125V
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Right Angle
Depth 8.8mm
Insulation Height 0.157 4.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Voltage - Rated AC 125V
Approval Agency CSA
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 3 Wall
Number Of PCB Rows 1
Lead Pitch 2mm
Contact Length - Mating 0.177 4.50mm
Contact Gender Male
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CT
Published 2007
Packaging Bulk
UL Flammability Code 94V-0
Housing Color Natural
Operating Supply Voltage 125V
Contact Resistance 20mOhm
Mating Contact Pitch 0.079 inch
ELV Compliant
Max Voltage Rating (AC) 125V
Polarization Key POLARIZED HOUSING
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Max Voltage Rating (DC) 125V
Sealable No
Contact Current Rating 4A
Mating Retention Without
Mating Post Length 4.4958mm
Physical
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Shape Rectangular
Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 7 Weeks
Dimensions
Height 8.8mm
Length 13.8mm
Width 3.9878mm
Plating Thickness 39μin
Contact Finish Thickness - Mating 1μm
Length - Tail 3.2mm
PCB Thickness 800μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
