292175-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

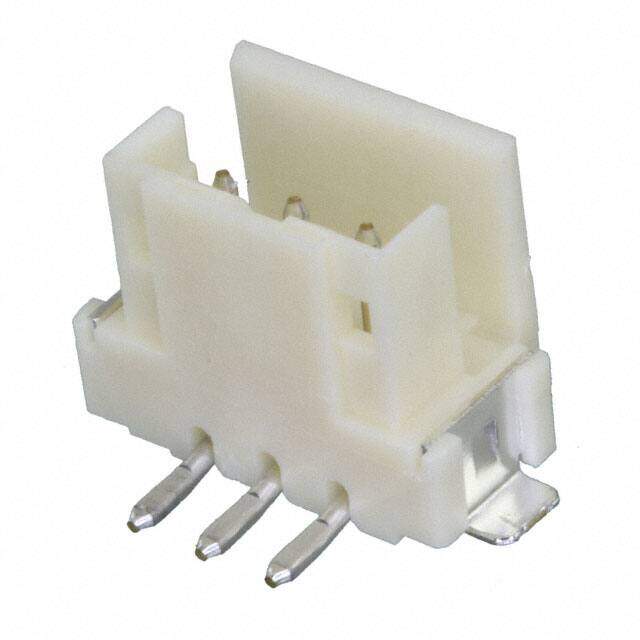

Headers & Wire Housings CT BOX HDR V SMT 3P
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.63184
≥100 USD $0.50996
Inventory: 1154
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 800μm
Plating Thickness 2μm
Width 5.8mm
Length 7.8mm
Height 7.8mm
Technical
Mating Post Length 4.4958mm
Insulation Diameter 930 μm
Mating Retention Without
Contact Current Rating 4A
Sealable No
Max Voltage Rating (DC) 125V
Wire/Cable Gauge 22 AWG
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 125V
ELV Compliant
Mating Contact Pitch 0.079 inch
Contact Resistance 20mOhm
Operating Supply Voltage 125V
Housing Color Natural
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.228 inch
Contact Length - Mating 0.177 4.50mm
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 4A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.307 7.80mm
Terminal Pitch 2mm
Orientation Vertical
Total Number of Contacts 3
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Detent Lock
Voltage - Rated 125VAC
Number of Rows 1
Applications General Purpose
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
Series CT
Published 2010
Packaging Tape & Reel (TR)
Physical
PCB Mount Retention With
Shape Rectangular
Housing Material Polyphenylene
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 14 Weeks
Alternative Model
