292173-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

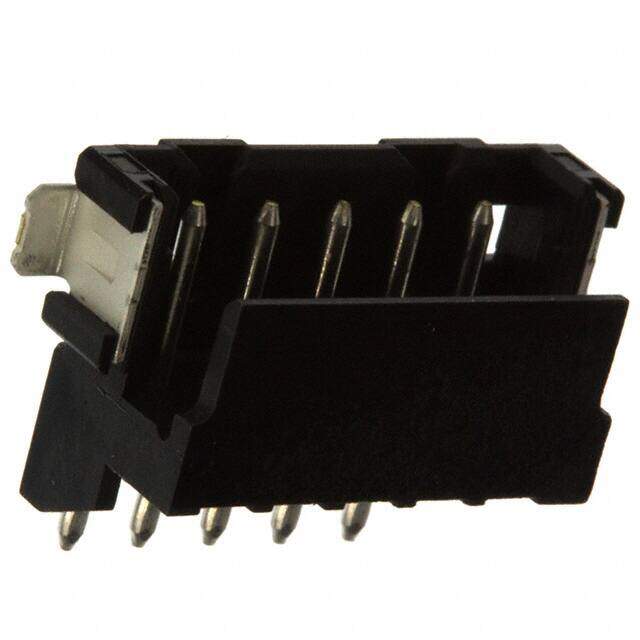

CONN HEADER 5POS R/A 2MM SMD TIN
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.86416
≥100 USD $0.7436
Inventory: 17372
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Housing Material Nylon
Shape Rectangular
PCB Mounting Orientation Right Angle
PCB Mount Alignment With
Technical
Packaging Tape & Reel (TR)
Published 2006
Series CT
Feature Board Guide, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose
Number of Rows 1
Voltage - Rated 125VAC
Fastening Type Detent Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 5
Orientation Right Angle
Depth 7.45mm
Insulation Height 0.228 5.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.079 2.00mm
Approval Agency UL
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.165 4.20mm
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Operating Supply Voltage 125V
Contact Resistance 20mOhm
ELV Compliant
Max Voltage Rating (AC) 125V
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Max Voltage Rating (DC) 125V
Sealable No
Contact Current Rating 4A
Mating Retention Without
Mating Post Length 4.2mm
Dimensions
Height 6mm
Length 11.7983mm
Width 9mm
Plating Thickness 2μm
PCB Thickness 800μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
