292161-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

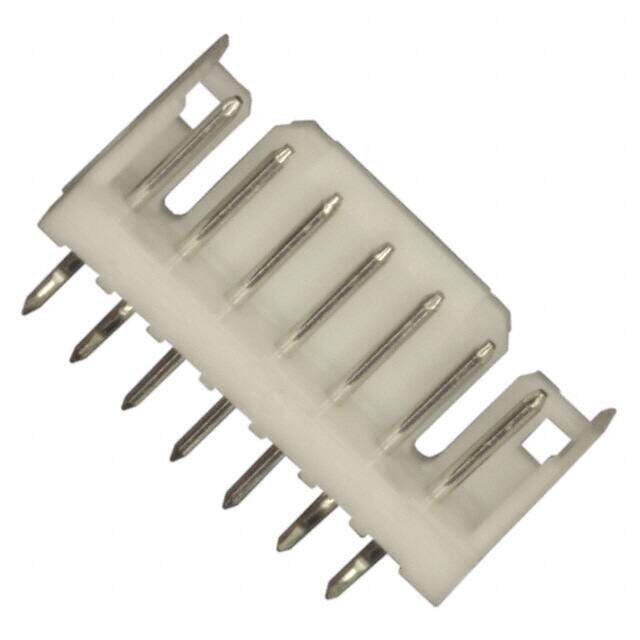

CONN HEADER 7POS VERT 2MM T/H
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.33968
≥100 USD $0.282656
≥500 USD $0.250078
Inventory: 19358
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Mounting Option 1 LOCKING
PCB Mount Retention With
Technical
Packaging Bulk
Published 2004
Series CT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 7
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose
Number of Rows 1
Voltage - Rated 125VAC
HTS Code 8536.69.40.40
Fastening Type Detent Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Terminal Pitch 2mm
Insulation Height 0.268 6.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 3 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.177 4.50mm
UL Flammability Code 94V-0
Housing Color Natural
Body Depth 0.268 inch
Operating Supply Voltage 125V
Overall Contact Length 0.370 9.40mm
Contact Resistance 20mOhm
Polarization Key POLARIZED HOUSING
Durability 30 Cycles
Sealable No
Mating Retention Without
Dimensions
Height 7mm
Length 15.7988mm
Width 3.5814mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
