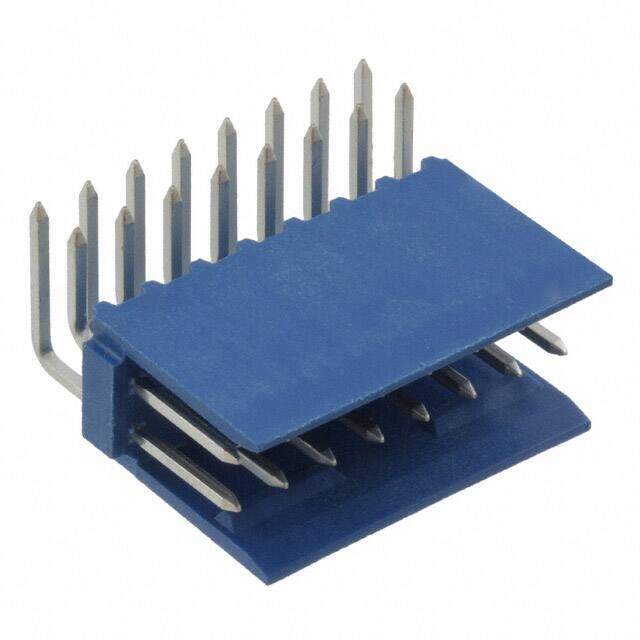

281742-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header (2 Sides) HDR 16 POS 2.54mm Solder RA Thru-Hole Package
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.012
≥1 USD $1.012
≥10 USD $0.92664
≥100 USD $0.826144
≥500 USD $0.803563
Inventory: 3294
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
Material Glass, Polyester
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2004
Series HE13/HE14
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Applications General Purpose
Number of Rows 2
Fastening Type Friction Lock
Voltage - Rated DC 500V
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Depth 15.34mm
Insulation Height 0.300 7.62mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 2 Wall
Lead Pitch 2.54mm
Contact Length - Mating 0.276 7.00mm
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Blue
Lead Length 2.9mm
Working Voltage 500V
Contact Resistance 30mOhm
Insulation Resistance 1GOhm
ELV Compliant
Number of Poles 16
Contact Current Rating 3A
Mating Post Length 6.75mm
Hole Diameter 1 mm
Keyed No
Shrouded End Dimension 1.27 mm
Dimensions
Length 20.32mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
