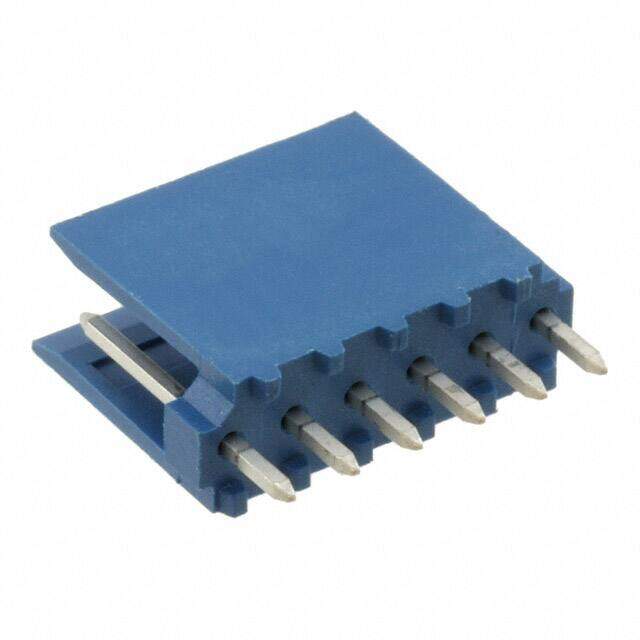

281695-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Loose Piece
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $1.07184
≥100 USD $0.921976
≥500 USD $0.677802
≥1000 USD $0.65787
≥3000 USD $0.616818
Inventory: 1448
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Length 15.24mm
Technical
Shrouded End Dimension 1.27 mm
Keyed No
Hole Diameter 1 mm
Mating Post Length 6.75mm
Contact Current Rating 3A
Number of Poles 6
ELV Compliant
Row Spacing 2.54 mm
Insulation Resistance 1GOhm
Contact Resistance 15mOhm
Overall Contact Length 0.492 12.50mm
Working Voltage 500V
Lead Length 2.9mm
Housing Color Blue
UL Flammability Code 94V-0
Contact Gender Male
Contact Length - Mating 0.276 7.00mm
Lead Pitch 2.54mm
Shrouding Shrouded - 2 Wall
Contact Length - Post 0.114 2.90mm
Approval Agency CSA
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.449 11.40mm
Depth 5.08mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Voltage - Rated DC 500V
Fastening Type Friction Lock
Additional Feature AMPMODU
Number of Rows 1
Applications General Purpose
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series HE13/HE14
Published 2005
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
PCB Mounting Orientation Vertical
Material Glass, Polyester
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 15 Weeks
