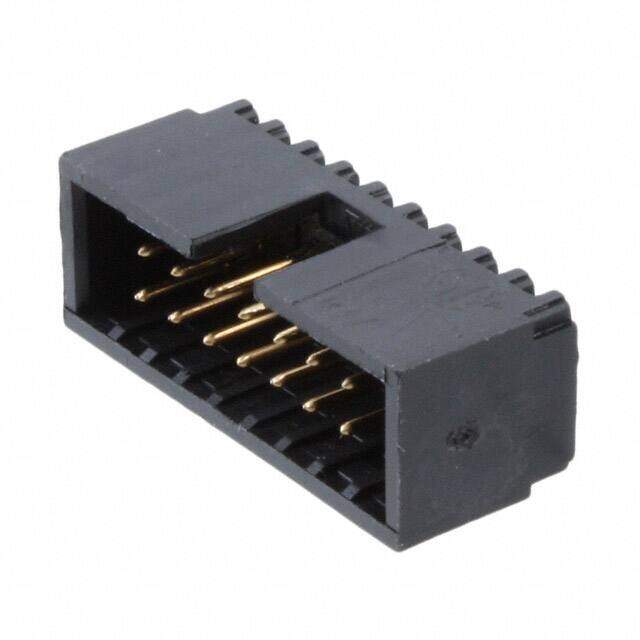

281280-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 14POS GOLD R/A .100
PDF
/
Inventory: 10001
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Thermoplastic
PCB Mounting Orientation Right Angle
Technical
Packaging Bulk
Published 2011
Series AMP-Latch
JESD-609 Code e3
Feature Keying Slot
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 14
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 13.5mm
Insulation Height 0.362 9.20mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Contact Gender Male
Operating Temperature (Min) -65°C
UL Flammability Code 94V-0
Housing Color Black
Lead Length 3.1mm
Rated Current (Signal) 1A
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
ELV Compliant
Polarization Key CENTER
Dielectric Withstanding Voltage 1000VAC V
Dimensions
Length 25.4mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Alternative Model
