280509-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

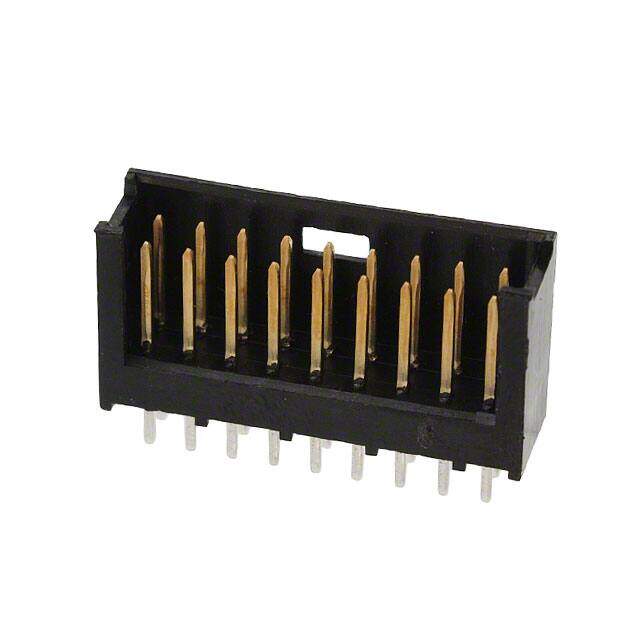

AMP FROM TE CONNECTIVITY 280509-2 Wire-To-Board Connector, Shrouded, AMPMODU Mod II Series, 18 Contacts, Header, 2.54 mm
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.156
≥1 USD $2.156
≥10 USD $1.92368
≥100 USD $1.727748
Inventory: 572
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 98.4μin 2.50μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 2.5μm
Length 25.4mm
Technical
Shrouded End Dimension 1.65 mm
High Temperature Housing No
Mating Post Length 6.604mm
ELV Compliant
Insulation Resistance 1GOhm
Contact Resistance 15mOhm
Overall Contact Length 0.563 14.30mm
Lead Length 3.5052mm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Male
Contact Length - Mating 0.260 6.60mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Shrouding Shrouded - 3 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.496 12.60mm
Depth 7mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
Voltage - Rated 40V
Number of Rows 2
Number of Positions 18
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AMPMODU Mod II
Published 2001
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 33 Weeks
