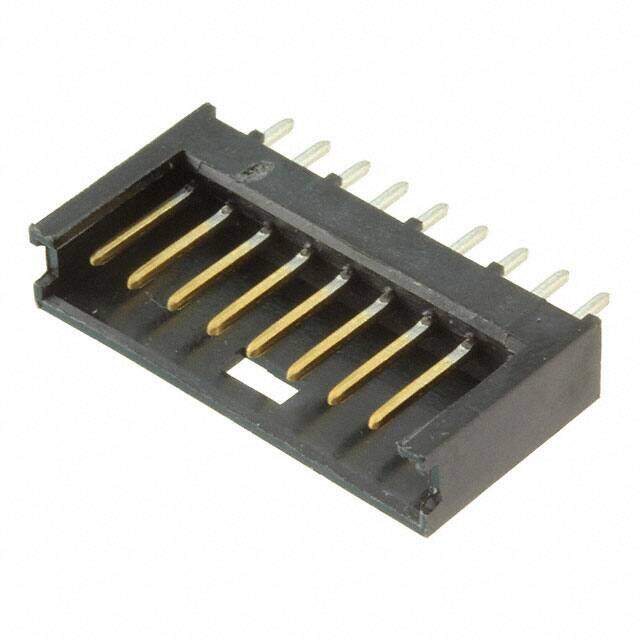

280508-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings MOD II THERMOSET DR
PDF
/
Buying Options
Total Price: USD $1.51
Unit Price: USD $1.5136
≥1 USD $1.5136
≥10 USD $1.38248
≥100 USD $1.103502
≥500 USD $0.987703
≥1000 USD $0.885526
≥3000 USD $0.84304
Inventory: 1114
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 98.4μin 2.50μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 2.5μm
Length 25.4mm
Technical
Shrouded End Dimension 1.65 mm
Keyed No
Mating Post Length 6.604mm
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Row Spacing 2.54 mm
Insulation Resistance 5000000000Ohm
Overall Contact Length 0.563 14.30mm
Lead Length 3.5052mm
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.260 6.60mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Shrouded - 3 Wall
Contact Length - Post 0.138 3.50mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.496 12.60mm
Depth 5mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
Voltage - Rated 40V
Number of Rows 1
Number of Positions 9
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series AMPMODU Mod II
Published 2009
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
PCB Mounting Orientation Vertical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Brass
