280389-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

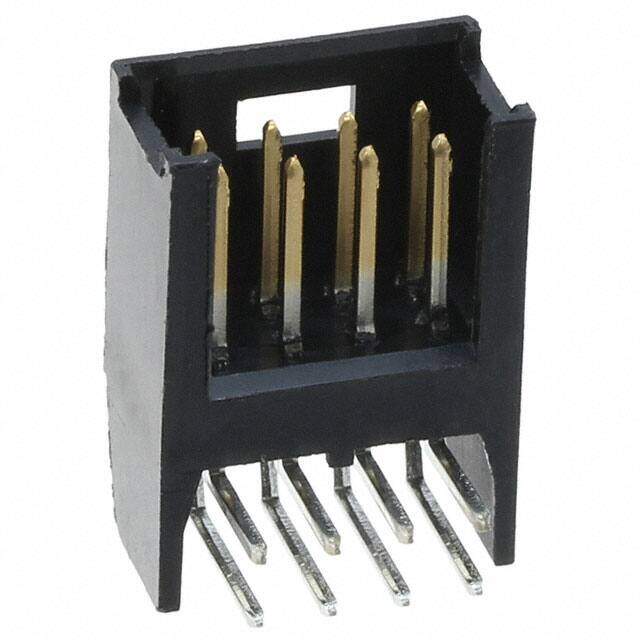

Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Automotive Box
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.0384
≥1 USD $1.0384
≥10 USD $0.946
≥100 USD $0.843392
≥500 USD $0.820371
Inventory: 5743
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 98.4μin 2.50μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 2.5μm
Length 12.7mm
Technical
Shrouded End Dimension 1.65 mm
High Temperature Housing No
Mating Post Length 6.604mm
Dielectric Withstanding Voltage 1050VAC V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Rated Current (Signal) 3A
Lead Length 3.5052mm
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.260 6.60mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Shrouded - 3 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.276 7.00mm
Depth 17.4mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
Additional Feature AMPMODU, SHROUDED
Voltage - Rated 40V
Number of Rows 2
Number of Positions 8
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU Mod II
Published 1997
Packaging Bulk
Operating Temperature -40°C~80°C
Physical
PCB Mounting Orientation Right Angle
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Brass
