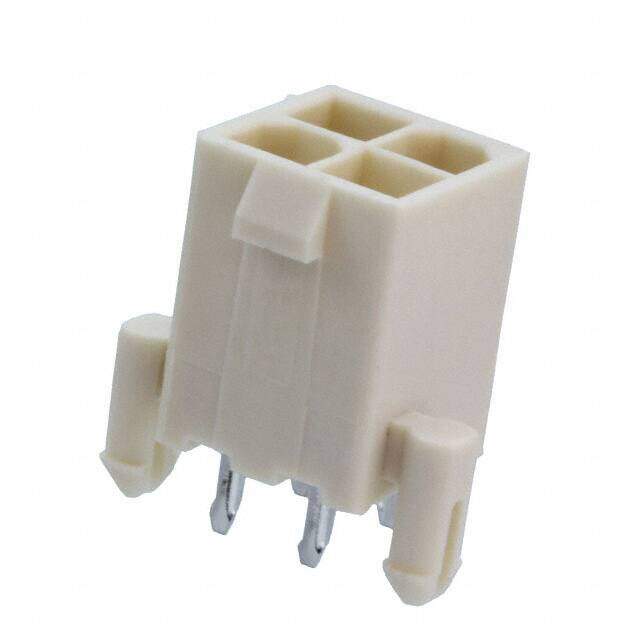

2029265-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors 4P VRT HDR W/PGS GLOW WIRE
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.64504
≥100 USD $0.487916
≥500 USD $0.460812
≥1000 USD $0.403885
≥3000 USD $0.352387
Inventory: 3514
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 700μm
Width 9.75mm
Length 9.6mm
Height 12.8mm
Technical
Contact Retention Without
Insulation Diameter 3.0988 mm
Number of Power Positions 4
Circuit Application Power
Contact Current Rating 9A
Sealable No
Plating Tin
ELV Compliant
Operating Supply Voltage 600V
Housing Color Natural, White
Contact Finish - Post Tin
Number of Contacts 4
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Approval Agency CSA
Insulation Color White
Pitch - Mating 0.165 4.20mm
Current Rating 9A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Orientation Vertical
Pitch 4.2mm
Current Rating (Amps) 9A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 600VAC
Number of Rows 2
Applications General Purpose, Industrial, Lighting
Color White
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Glow Wire Compliant
Series VAL-U-LOK
Published 2008
Packaging Tray
Operating Temperature -40°C~105°C
Physical
PCB Mounting Orientation Vertical
Housing Material Polyamide
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 16 Weeks
