2029150-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

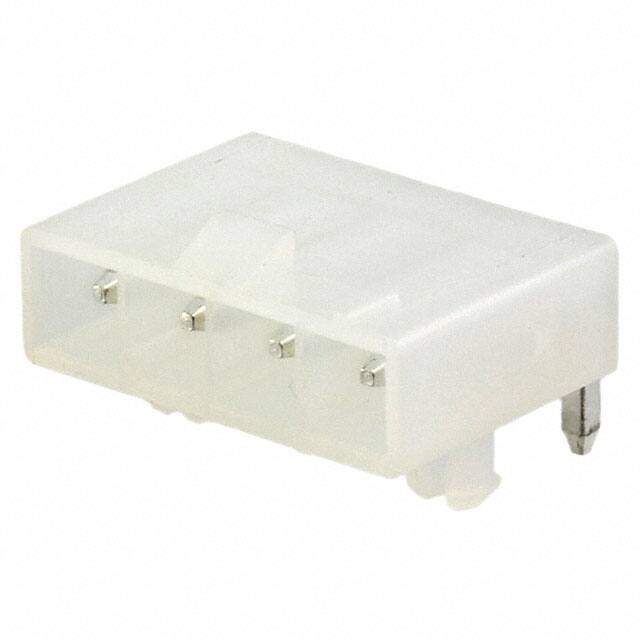

In a Pack of 5500, TE Connectivity VAL-U-LOK, 4 Way, 1 Row, Right Angle PCB Header
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.66528
≥100 USD $0.503325
≥500 USD $0.416645
≥1000 USD $0.36351
≥3000 USD $0.346069
Inventory: 3201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series VAL-U-LOK
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Max Operating Temperature 221°C
Min Operating Temperature -40°C
Applications General Purpose, Industrial, Lighting
Number of Rows 1
Voltage - Rated 600VAC
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 9A
Pitch 4.2mm
Orientation Right Angle
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 9A
Pitch - Mating 0.165 4.20mm
Approval Agency CSA
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Number of Contacts 4
Contact Finish - Post Tin
Housing Color Natural
Operating Supply Voltage 600V
ELV Compliant
Plating Tin
Sealable No
Contact Current Rating 9A
Circuit Application Power
Number of Power Positions 4
Insulation Diameter 3.0988 mm
Number of Signal Positions 0
Contact Retention Without
VDE Tested No
Dimensions
Height 5.4mm
Length 18.00098mm
Width 12.446mm
PCB Thickness 70μm
Compliance
Material Flammability Rating UL94 V-2
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
