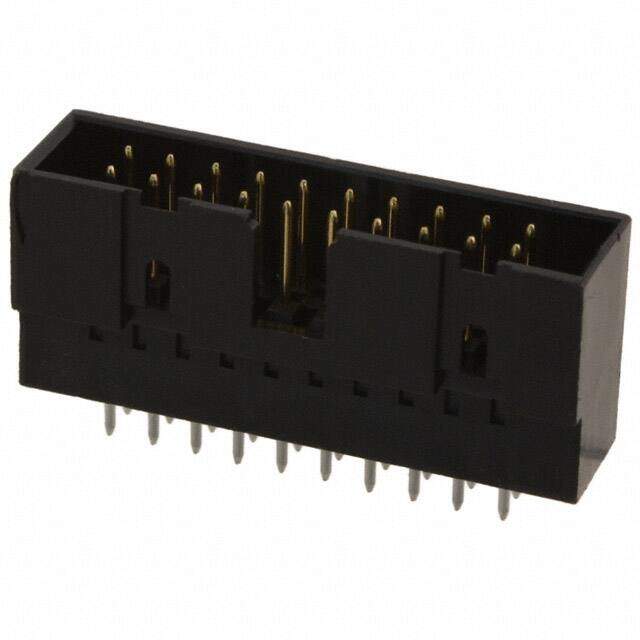

2-827745-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 20 WAY SHORT STYLE HDR GERMAN
PDF
/
Inventory: 8670
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 31.5μin 0.80μm
Plating Thickness 31μin
Length 32.1mm
Technical
Dielectric Withstanding Voltage 1000VAC V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 1A
Lead Length 3mm
UL Flammability Code 94V-0
Operating Temperature (Min) -65°C
Contact Gender Male
Body Breadth 0.346 inch
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Depth 8.8mm
Orientation Vertical
Total Number of Contacts 20
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold or Gold-Palladium
HTS Code 8536.69.40.40
Number of Rows 2
Number of Positions 20
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Keying Slot, Mounting Flange
JESD-609 Code e3
Series AMP-Latch
Published 2003
Packaging Bulk
Physical
Housing Material Thermoplastic
Contact Shape Round
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Brass
