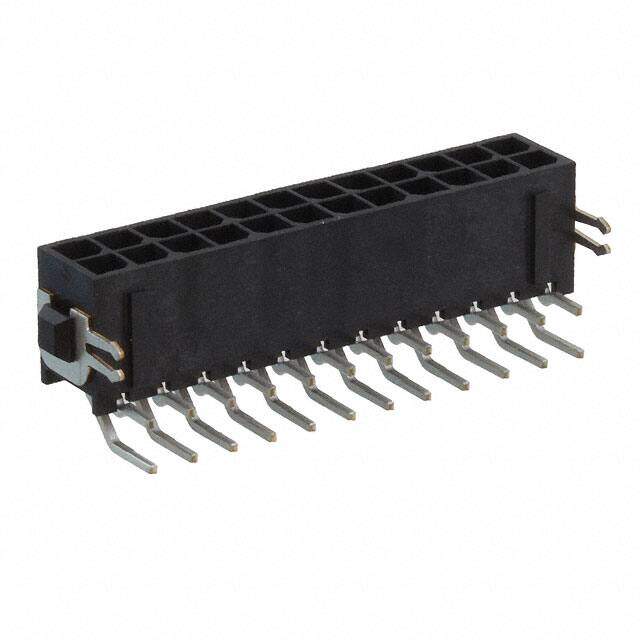

2-794677-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors 24POS MICRO MNL ASSY R/A,THRU
PDF
/
Inventory: 8155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.118 inch
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Plating Thickness 100μin
Technical
Withdrawl Force-Min .695 N
Durability 30 Cycles
Dielectric Withstanding Voltage 1500VAC V
Polarization Key POLARIZED HOUSING
ELV Non-Compliant
Mating Contact Pitch 0.118 inch
Insulation Resistance 100000000Ohm
Body Depth 0.469 inch
Lead Length 3.18mm
UL Flammability Code 94V-0
Body Breadth 0.341 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Body Length or Diameter 1.575 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.290 7.37mm
Terminal Pitch 3mm
Orientation Right Angle
Total Number of Contacts 24
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin-Lead
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Voltage - Rated 250V
Number of Rows 2
Applications General Purpose
Number of Positions 24
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Board Lock
JESD-609 Code e0
Series Micro MATE-N-LOK
Published 2008
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
