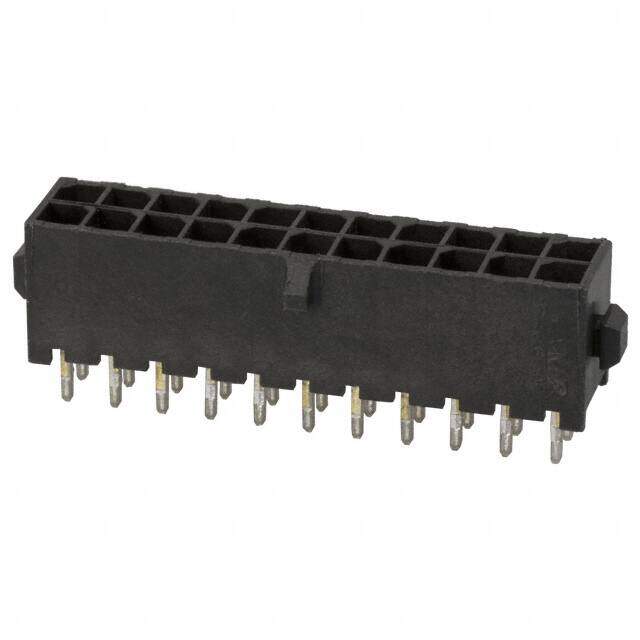

2-794632-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors 22POS MICRO MNL ASSY VRT,HDR
PDF
/
Inventory: 2517
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Dielectric Withstanding Voltage 1500VAC V
Polarization Key POLARIZED HOUSING
ELV Non-Compliant
Mating Contact Pitch 0.118 inch
Insulation Resistance 100000000Ohm
Body Depth 0.364 inch
Empty Shell NO
Lead Length 3.18mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.341 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Lead Pitch 3mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.118 (3.00mm)
Body Length or Diameter 1.457 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Orientation Straight
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
HTS Code 8536.69.40.30
Voltage - Rated 250V
Gender Male
Number of Rows 2
Applications General Purpose
Number of Positions 22
Connector Type Header
ECCN Code EAR99
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Series Micro MATE-N-LOK
Published 2008
Packaging Tray
Operating Temperature -40°C~105°C
Durability 150 Cycles
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
