2-794629-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

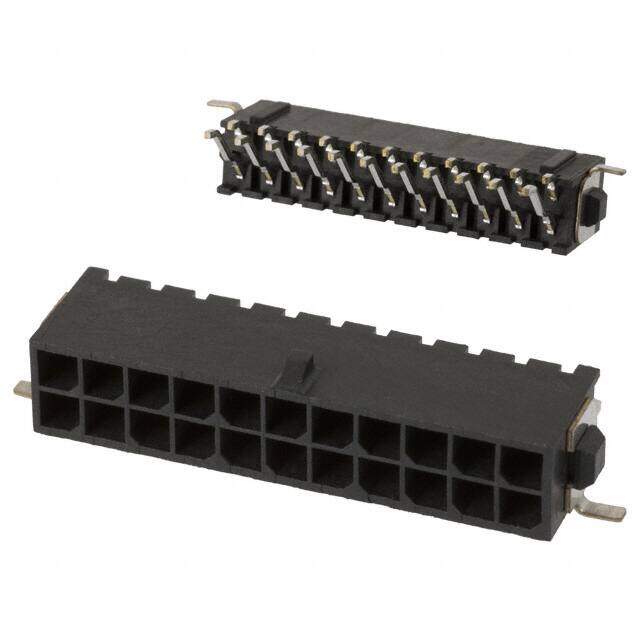

Pin & Socket Connectors 22POS MICRO MNL ASSY R/A,SMT
PDF
/
Inventory: 3924
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 37mm
Technical
Number of Ports 1
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Housing Color Black
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Lead Pitch 3mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.290 7.37mm
Depth 11.18mm
Orientation Right Angle
Total Number of Contacts 22
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Gender Male
Number of Rows 2
Applications General Purpose
Number of Positions 22
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Solder Retention
JESD-609 Code e0
Series Micro MATE-N-LOK
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Brass
