2-794620-0
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

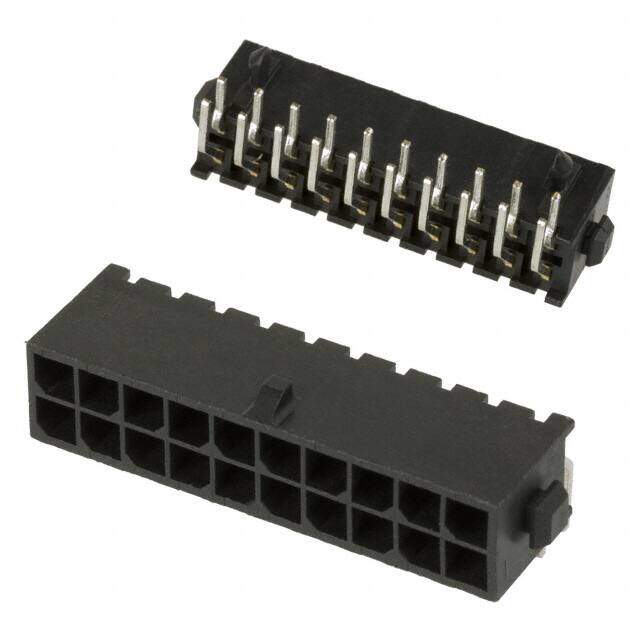

CONN HEADER 20POS DUAL R/A GOLD
PDF
/
Inventory: 7232
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2010
Series Micro MATE-N-LOK
JESD-609 Code e0
Feature Board Lock
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 20
Applications General Purpose
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 20
Orientation Right Angle
Depth 11.92mm
Insulation Height 0.290 7.37mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 3mm
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Housing Color Black
Lead Length 3.18mm
Empty Shell NO
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Number of Ports 1
Dimensions
Length 34mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
