2-794618-0
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

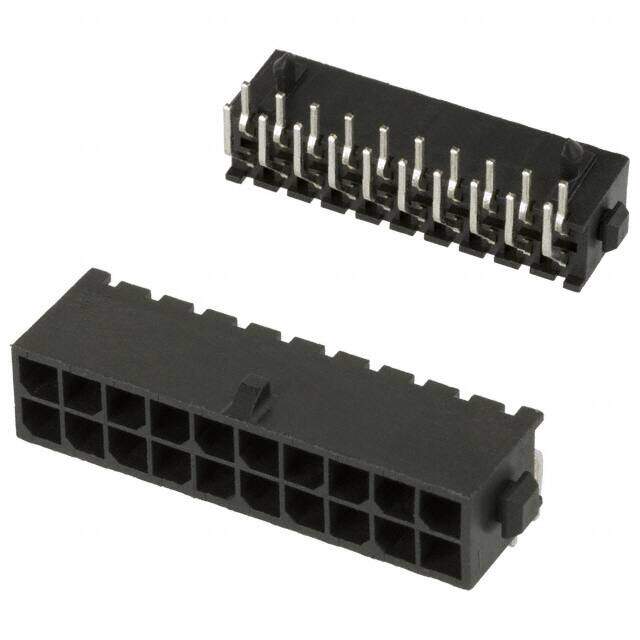

CONN HEADER 20POS DUAL R/A TIN
PDF
/
Inventory: 5727
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Length 34mm
Technical
Durability 30 Cycles
Number of Ports 1
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Lead Length 3.18mm
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Lead Pitch 3mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.290 7.37mm
Depth 11.92mm
Orientation Right Angle
Total Number of Contacts 20
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin-Lead
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Gender Male
Number of Rows 2
Applications General Purpose
Number of Positions 20
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Board Lock
JESD-609 Code e0
Series Micro MATE-N-LOK
Published 2002
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
