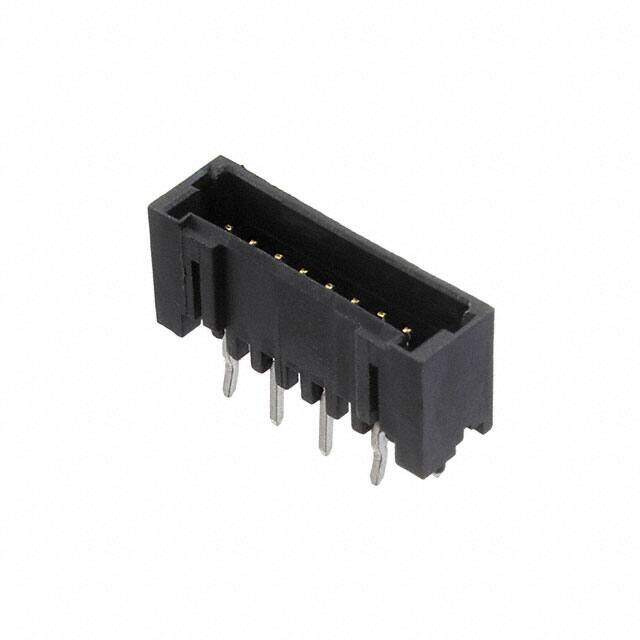

2-292207-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 9POS 1.5MM
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.44704
≥100 USD $0.44528
≥500 USD $0.434174
≥1000 USD $0.372434
≥3000 USD $0.318155
Inventory: 9532
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
PCB Mount Retention With
Technical
Operating Temperature -30°C~105°C
Packaging Bulk
Series Mini CT
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 9
Applications General Purpose
Number of Rows 1
Voltage - Rated 50VAC
Fastening Type Detent Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Insulation Height 0.272 6.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.059 1.50mm
Insulation Color Black
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.094 2.40mm
Operating Supply Voltage 50V
Overall Contact Length 0.307 7.80mm
Dimensions
Length 16mm
Width 4.699mm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
