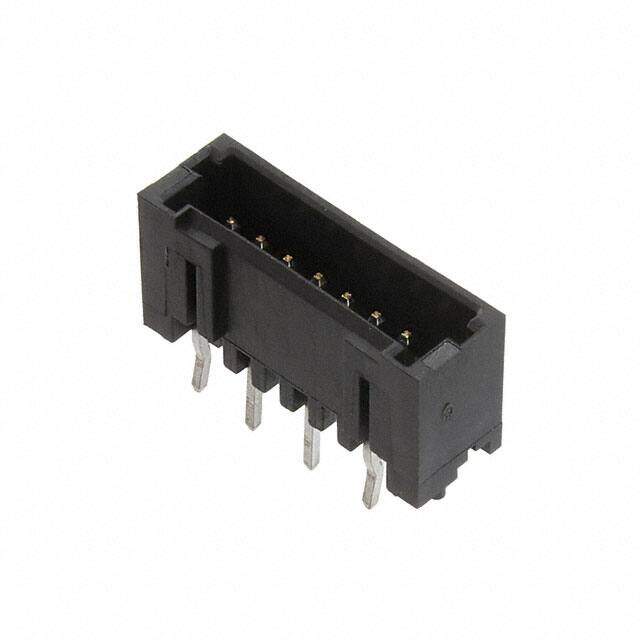

2-292207-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 8POS 1.5MM
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.4576
≥1 USD $0.4576
≥10 USD $0.42504
≥100 USD $0.423104
≥500 USD $0.4125
≥1000 USD $0.353795
≥3000 USD $0.320038
Inventory: 13714
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Width 4.699mm
Length 14.5mm
Technical
Overall Contact Length 0.307 7.80mm
Operating Supply Voltage 50V
Contact Length - Mating 0.094 2.40mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.118 3.00mm
Insulation Color Black
Pitch - Mating 0.059 1.50mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.272 6.91mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Detent Lock
Voltage - Rated 50VAC
Number of Rows 1
Applications General Purpose
Number of Positions 8
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series Mini CT
Packaging Bulk
Operating Temperature -30°C~105°C
Physical
PCB Mount Retention With
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 25 Weeks
