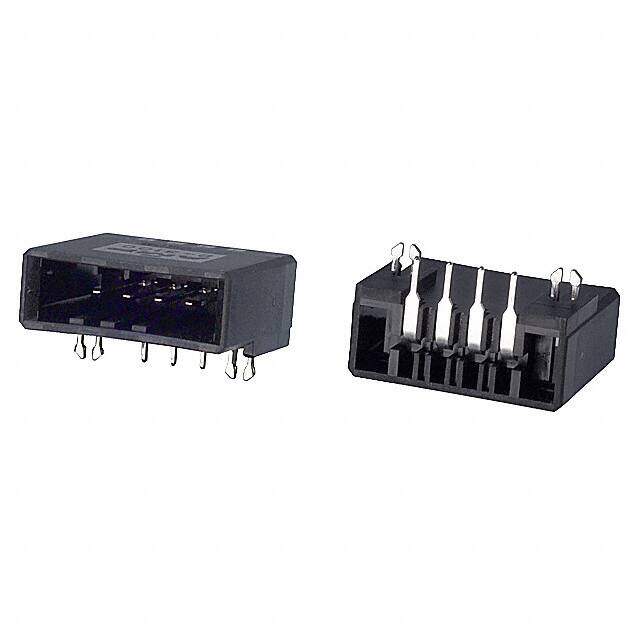

2-178294-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 4POS 3.81MM
PDF
/
Inventory: 8182
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Rectangular
Insulation Material Thermoplastic, Polyester, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2001
Series Dynamic D-3100
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Black
Applications General Purpose, Industrial
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Detent Lock
Contact Finish - Mating Tin
Contact Type Tab
Pitch 3.7846mm
Orientation Right Angle
Shielding Unshielded
Insulation Height 0.368 9.35mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 8A
Pitch - Mating 0.150 3.81mm
Insulation Color Black
Approval Agency UL
Contact Length - Post 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Number of Contacts 4
Contact Finish - Post Tin
Housing Color Black
Operating Supply Voltage 250V
ELV Compliant
Sealable No
Contact Current Rating 8A
Halogen Free Halogen Free
Mating Retention With
Contact Retention Without
Mating Alignment With
Preloaded Yes
VDE Tested No
Dimensions
Height 9.3472mm
Length 25.4mm
Width 9.3472mm
Contact Finish Thickness - Mating 78.7μin 2.00μm
Length - Tail 3.8mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
