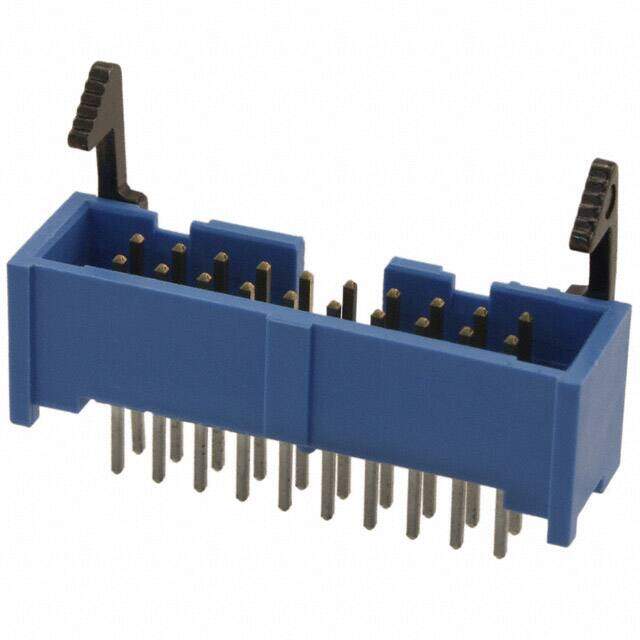

2-1761713-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER LOPRO 20PS VERT GOLD
PDF
/
Buying Options
Total Price: USD $2.78
Unit Price: USD $2.7808
≥1 USD $2.7808
≥10 USD $2.464836
≥100 USD $2.225282
Inventory: 809
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material PBT
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Technical
Packaging Bulk
Published 2008
Series AMP-Latch
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 20
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Blue
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks, Short
Contact Finish - Mating Gold or Gold-Palladium
Contact Type Male Pin
Pitch 2.54mm
Orientation Vertical
Depth 6.35mm
Insulation Height 0.404 10.26mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Blue
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.162 4.11mm
Shrouding Shrouded - 4 Wall
Number of Contacts 20
Contact Finish - Post Tin
Contact Length - Mating 0.237 6.02mm
Contact Gender Male
Housing Color Blue
Lead Length 4.11mm
Contact Resistance 20mOhm
ELV Compliant
Max Current Rating 4A
Circuit Application Signal
Mating Connector Lock With
Shrouded End Dimension 3.76 mm
Dimensions
Height 10.26mm
Length 33.02mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
