2-1761679-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

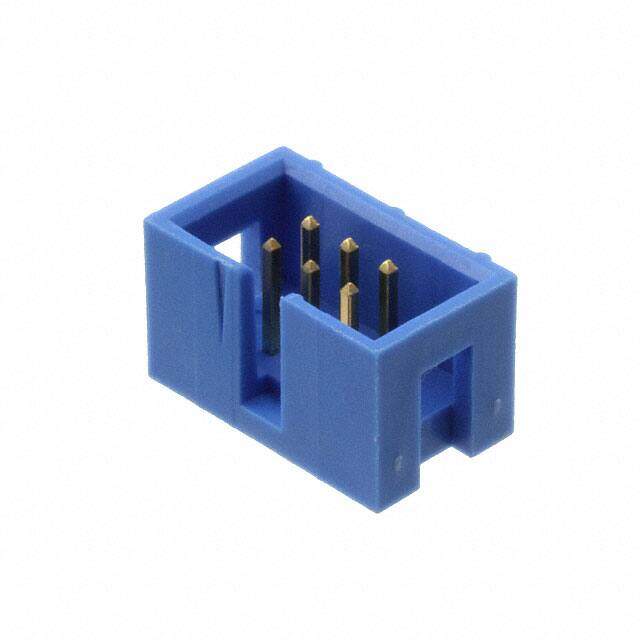

Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Package
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.1616
≥1 USD $1.1616
≥10 USD $1.036464
≥100 USD $0.935352
≥500 USD $0.738144
≥1000 USD $0.667357
≥3000 USD $0.625715
Inventory: 1738
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Technical
Packaging Bulk
Published 2009
Series AMP-Latch
JESD-609 Code e3
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Depth 9.22mm
Insulation Height 0.350 8.89mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Blue
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.165 4.19mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 4.19mm
Operating Supply Voltage 250V
Insulation Resistance 5GOhm
ELV Compliant
Max Voltage Rating (AC) 250V
Contact Current Rating 1A
Circuit Application Signal
Mating Connector Lock Without
Shrouded End Dimension 3.81 mm
Dimensions
Height 8.89mm
Length 15.24mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
