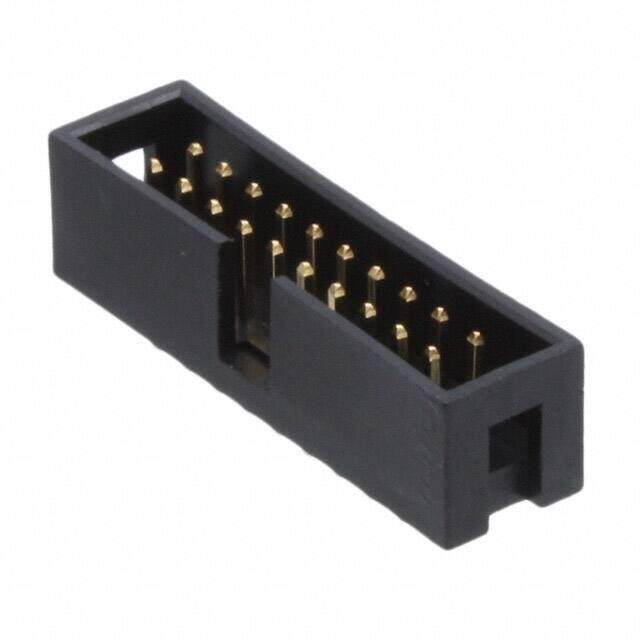

2-1634688-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings HDR STRAIGHT 20P
PDF
/
Inventory: 9779
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Material Polyester
Housing Material Thermoplastic
PCB Mounting Orientation Vertical
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2004
Series AMP-Latch
JESD-609 Code e3
Feature Keying Slot
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Orientation Straight
Depth 9mm
Insulation Height 0.343 8.71mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Approval Agency UL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
Body Breadth 0.354 inch
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Lead Length 3.02mm
Insulation Resistance 5GOhm
Mating Contact Pitch 0.1 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Number of Poles 20
Dimensions
Length 33.05mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 80.0μin 2.03μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
