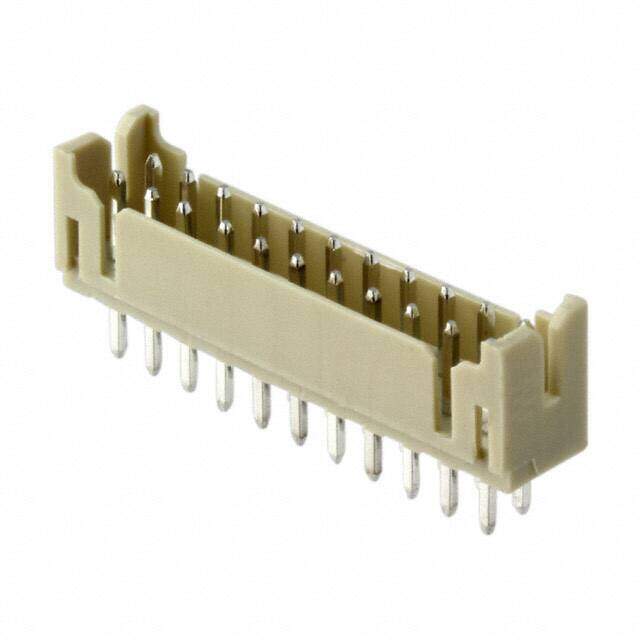

2-1470109-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 22 POS 2mm Solder ST Thru-Hole Bulk
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.968
≥1 USD $0.968
≥10 USD $0.90376
≥100 USD $0.77792
≥500 USD $0.685414
≥1000 USD $0.613932
≥3000 USD $0.55506
Inventory: 4944
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.57mm
Length - Termination 0.118 inch
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Plating Thickness 100μin
Height 6.5mm
Technical
Mating Alignment With
Mating Post Length 3mm
Contact Current Rating 3A
Withdrawl Force-Min .973 N
Insertion Force-Max 4.90114 N
Dielectric Withstanding Voltage 800VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Mating Contact Pitch 0.079 inch
Insulation Resistance 5GOhm
Rated Current (Signal) 3A
Lead Length 3mm
Housing Color Natural
UL Flammability Code 94V-0
Body Breadth 0.196 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Body Length or Diameter 0.945 inch
Approval Agency CSA
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.256 6.50mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Voltage - Rated DC 100V
Fastening Type Detent Lock
HTS Code 8536.69.40.40
Voltage - Rated 100VDC
Number of Rows 2
Number of Positions 22
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series AMPMODU
Published 2003
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
PCB Mount Retention Without
Housing Material Thermoplastic
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 16 Weeks
