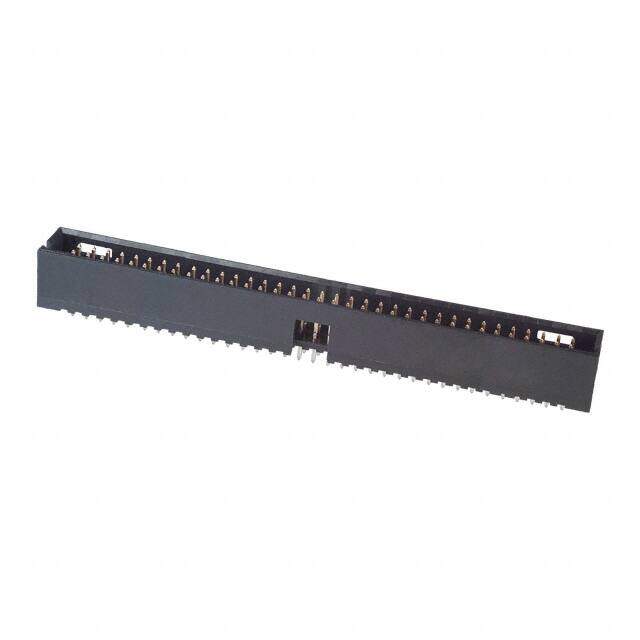

2-102619-8 image
Favorite
2-102619-8 image
Favorite

2-102619-8

TE Connectivity AMP Connectors
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT .100 60POS 15AU
PDF
/
Inventory: 1651
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic

Technical

Operating Temperature -65°C~105°C
Packaging Tray
Published 2005
Series AMPMODU Mod II
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 60
Number of Rows 2
Voltage - Rated 750V
HTS Code 8536.69.40.40
Fastening Type Detent Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.440 11.18mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.318 8.08mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.4 inch
Contact Gender Male
Housing Color Black
Body Depth 0.44 inch
Rated Current (Signal) 3A
Overall Contact Length 0.533 13.55mm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING

Dimensions

Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
