1877285-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

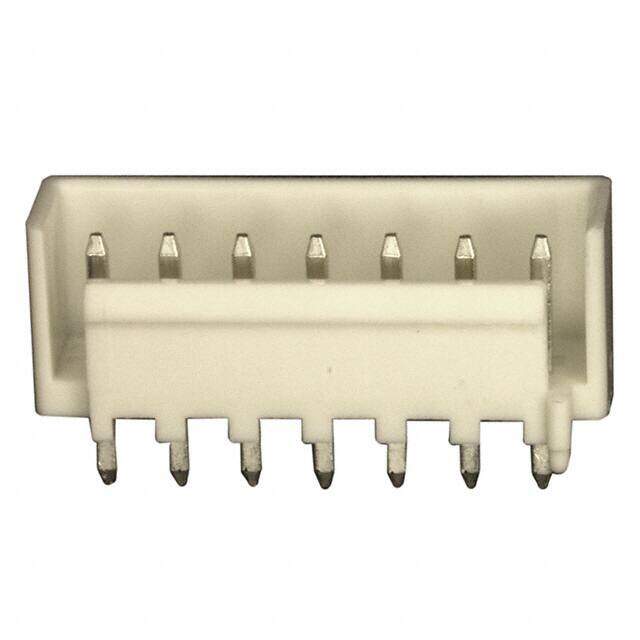

CONN HEADER VERT 7POS 3.96MM
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.3872
≥100 USD $0.293181
≥500 USD $0.286739
Inventory: 69882
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 63μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Plating Thickness 39.36μm
Width 9.5758mm
Length 30.97mm
Height 11.9888mm
Technical
Contact Retention Without
Mating Post Length 7.78mm
Number of Power Positions 7
Circuit Application Power
Contact Current Rating 8A
Sealable No
Max Voltage Rating (AC) 250V
ELV Compliant
Overall Contact Length 0.567 14.40mm
Operating Supply Voltage 250V
Empty Shell NO
Housing Color White, Black
UL Flammability Code 94V-0
Contact Length - Mating 0.306 7.77mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.142 3.60mm
Insulation Color White
Pitch - Mating 0.156 3.96mm
Current Rating 7.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.472 12.00mm
Depth 9.58mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 250VAC
Number of Rows 1
Applications General Purpose, Industrial, Lighting
Color Natural
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Economy Power
Published 2008
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
Housing Material PBT
Shell Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 16 Weeks
