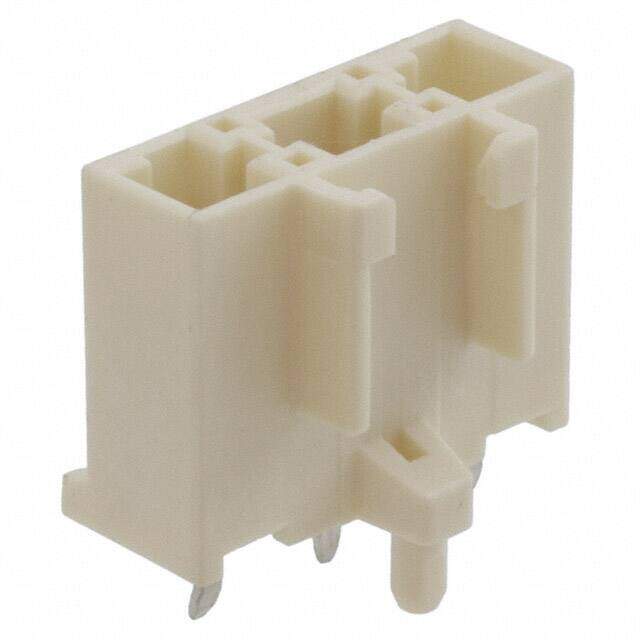

179846-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors AMP POWER D/LOCK T/HDR ASY 3P
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8303
≥1 USD $0.8303
≥10 USD $0.68115
≥100 USD $0.66025
≥500 USD $0.6384
≥1000 USD $0.6175
Inventory: 1922
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Polyamide (PA66), Nylon 6/6
Shell Material GLASS FILLED POLYAMIDE66
Housing Material Nylon
Technical
Operating Temperature -30°C~105°C
Packaging Tray
Published 1998
Series Power Double Lock
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Header
Applications General Purpose
Number of Rows 1
Voltage - Rated 300V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Tab
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Depth 10.8mm
Insulation Height 0.575 14.60mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 9A
Pitch - Mating 0.256 6.50mm
Approval Agency UL
Contact Length - Post 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Contact Gender Male
Housing Color Natural
Empty Shell NO
Operating Supply Voltage 300V
Sealable No
Contact Current Rating 14A
Circuit Application Power
Insulation Diameter 3.1 mm
Number of Signal Positions 0
Contact Retention Without
VDE Tested Yes
Dimensions
Height 14.5mm
Length 10.8mm
Width 9.4mm
Plating Thickness 1μm
PCB Thickness 63μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
