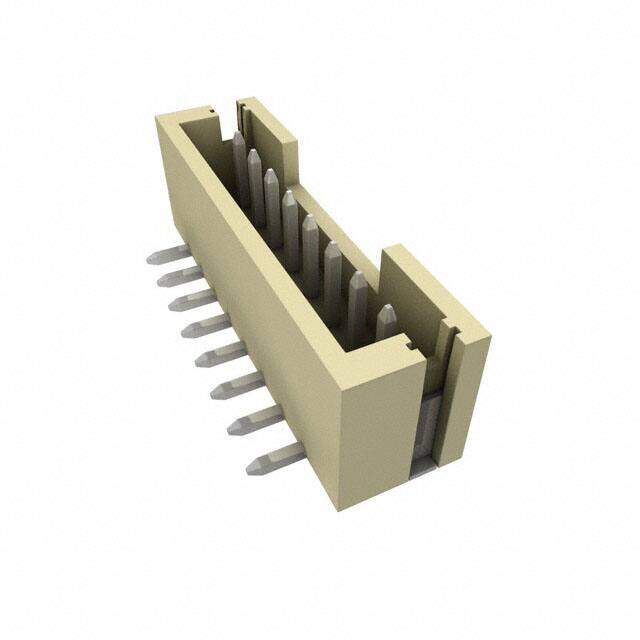

1775470-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 8POS 2MM VERT SMD
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.86504
≥100 USD $0.712536
Inventory: 6146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Brass
Contact Plating Nickel, Tin
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Housing Material Nylon
PCB Mounting Orientation Vertical
PCB Mount Retention With
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Published 2006
Series High Performance Interconnect (HPI)
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 8
Insulation Height 0.242 6.14mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.138 3.50mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 2mm
Body Depth 0.242 inch
Operating Supply Voltage 250V
Rated Current (Signal) 3A
Insulation Resistance 500000000Ohm
Mating Contact Pitch 0.079 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
Wire/Cable Type Discrete
Durability 50 Cycles
Insertion Force-Max 6.672 N
Sealable No
Contact Current Rating 3A
Mating Retention Without
Mating Post Length 3.5mm
Dimensions
Height 6.15mm
Length 19.4mm
Width 5.4mm
Plating Thickness 2μm
Contact Finish Thickness - Mating 80.0μin 2.03μm
Contact Finish Thickness - Post 80.0μin 2.03μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
