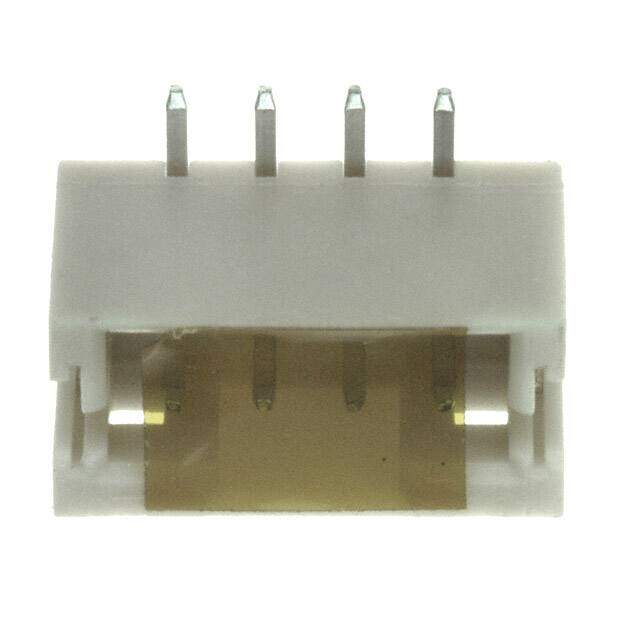

1775470-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header (4 Sides) HDR 4 POS 2mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $8.67
Unit Price: USD $0.8667
≥10 USD $0.8667
≥100 USD $0.72896
≥500 USD $0.59336
≥1000 USD $0.55977
Inventory: 2036
Minimum: 10
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 80.0μin 2.03μm
Contact Finish Thickness - Mating 80.0μin 2.03μm
Plating Thickness 2μm
Width 5.4mm
Length 11.4046mm
Height 6.15mm
Technical
Mating Post Length 3.5mm
Mating Retention Without
Contact Current Rating 3A
Sealable No
Insertion Force-Max 6.672 N
Durability 50 Cycles
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
ELV Compliant
Mating Contact Pitch 0.079 inch
Insulation Resistance 500000000Ohm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Lead Length 2mm
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.138 3.50mm
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.242 6.14mm
Depth 5.4mm
Total Number of Contacts 4
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
Series High Performance Interconnect (HPI)
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Vertical
Housing Material Polyamide
Insulation Material Polyamide (PA9T), Nylon 9T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Nickel, Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 14 Weeks
