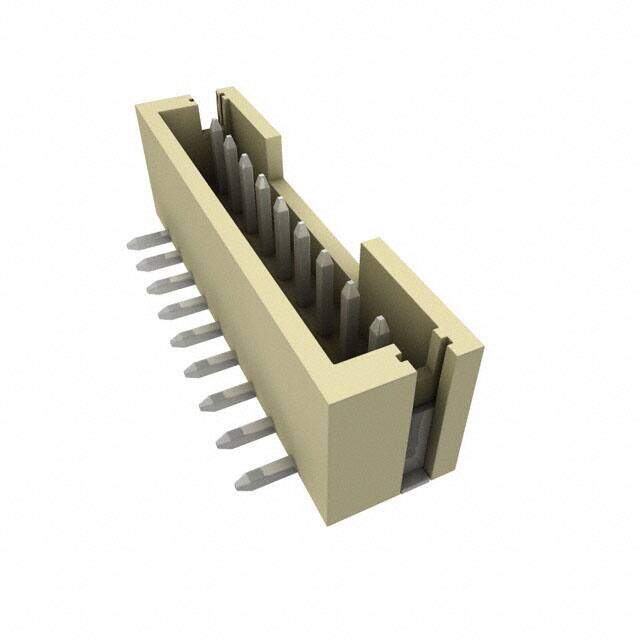

1775469-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 9POS 2MM R/A SMD
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.68112
≥100 USD $0.549736
Inventory: 2336
Minimum: 1
-
+
Technical Details
Physical
Housing Material Nylon
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Insulation Material Polyamide (PA9T), Nylon 9T
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Nickel, Tin
Contact Material Brass
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Published 2006
Series High Performance Interconnect (HPI)
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 9
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Contact Type Male Pin
Total Number of Contacts 9
Orientation Right Angle
Terminal Pitch 2.0066mm
Insulation Height 0.217 5.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.139 3.53mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
Lead Length 990.6μm
Operating Supply Voltage 250V
Rated Current (Signal) 3A
Insulation Resistance 500000000Ohm
ELV Compliant
Polarization Key POLARIZED HOUSING
Wire/Cable Type Discrete
Durability 50 Cycles
Insertion Force-Max 6.672 N
Withdrawl Force-Min .7784 N
Sealable No
Contact Current Rating 3A
Mating Retention Without
Mating Post Length 3.53mm
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 14 Weeks
Dimensions
Height 5.5118mm
Length 21.4mm
Width 7.5946mm
Plating Thickness 2μm
Contact Finish Thickness - Mating 80.0μin 2.03μm
Contact Finish Thickness - Post 80.0μin 2.03μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
