1775443-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

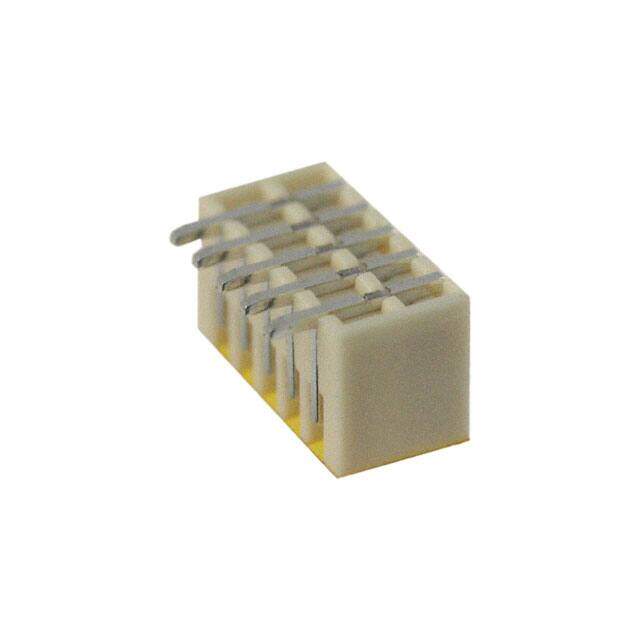

Conn High Performance Interconnects PL 5 POS 1.5mm ST SMD Tube
PDF
/
Inventory: 6825
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Material Brass
Contact Plating Nickel, Tin
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Thermoplastic
PCB Mount Retention Without
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2009
Series High Performance Interconnect (HPI)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 5
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Gender Male
Voltage - Rated 250VAC
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 5
Orientation Vertical
Insulation Height 0.197 5.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.059 1.50mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 4
Contact Length - Mating 0.106 2.70mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.236 inch
UL Flammability Code 94V-0
Lead Length 1.55mm
Operating Supply Voltage 250V
Rated Current (Signal) 3A
Contact Resistance 40mOhm
ELV Compliant
Polarization Key POLARIZED HOUSING
Wire/Cable Type Discrete
Sealable No
Contact Current Rating 3A
Circuit Application Signal
Mating Post Length 2.7mm
Dimensions
Height 5mm
Length 8.9916mm
Width 5.9944mm
Plating Thickness 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
