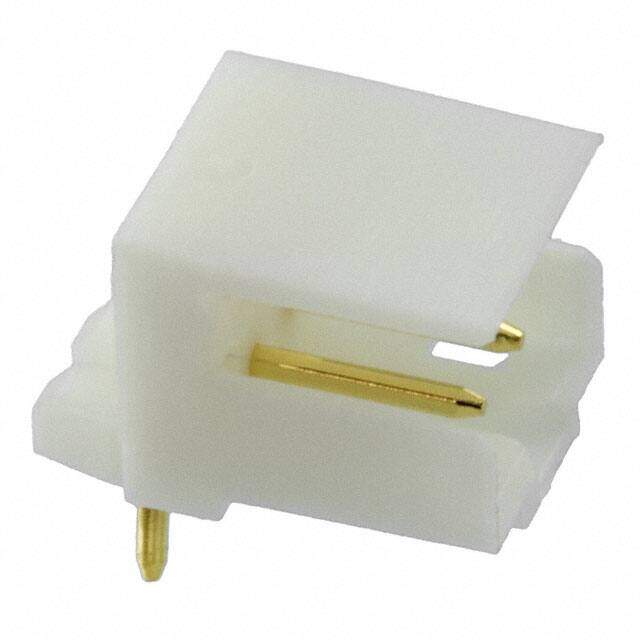

176394-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 2POS 2MM
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6424
≥1 USD $0.6424
≥10 USD $0.62304
≥100 USD $0.502304
≥500 USD $0.389787
≥1000 USD $0.340085
≥3000 USD $0.323761
Inventory: 1746
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 800μm
Length - Tail 3.2mm
Contact Finish Thickness - Mating 200 nm
Plating Thickness 200 nm
Width 5.8mm
Length 5.8mm
Height 8.8mm
Technical
Mating Post Length 4.2mm
Mating Retention Without
Insulator Color WHITE
Contact Current Rating 4A
Sealable No
Wire/Cable Gauge 22 AWG
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
ELV Compliant
Mating Contact Pitch 0.079 inch
Operating Supply Voltage 125V
Housing Color Natural
UL Flammability Code 94V-0
Contact Length - Mating 0.165 4.20mm
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Approval Agency UL
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 4A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.228 5.80mm
Depth 5.8mm
Orientation Right Angle
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
HTS Code 8536.69.40.40
Voltage - Rated 125VAC
Number of Rows 1
Applications General Purpose
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Number of Positions 2
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CT
Published 2005
Packaging Bulk
Physical
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Shape Rectangular
Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 12 Weeks
