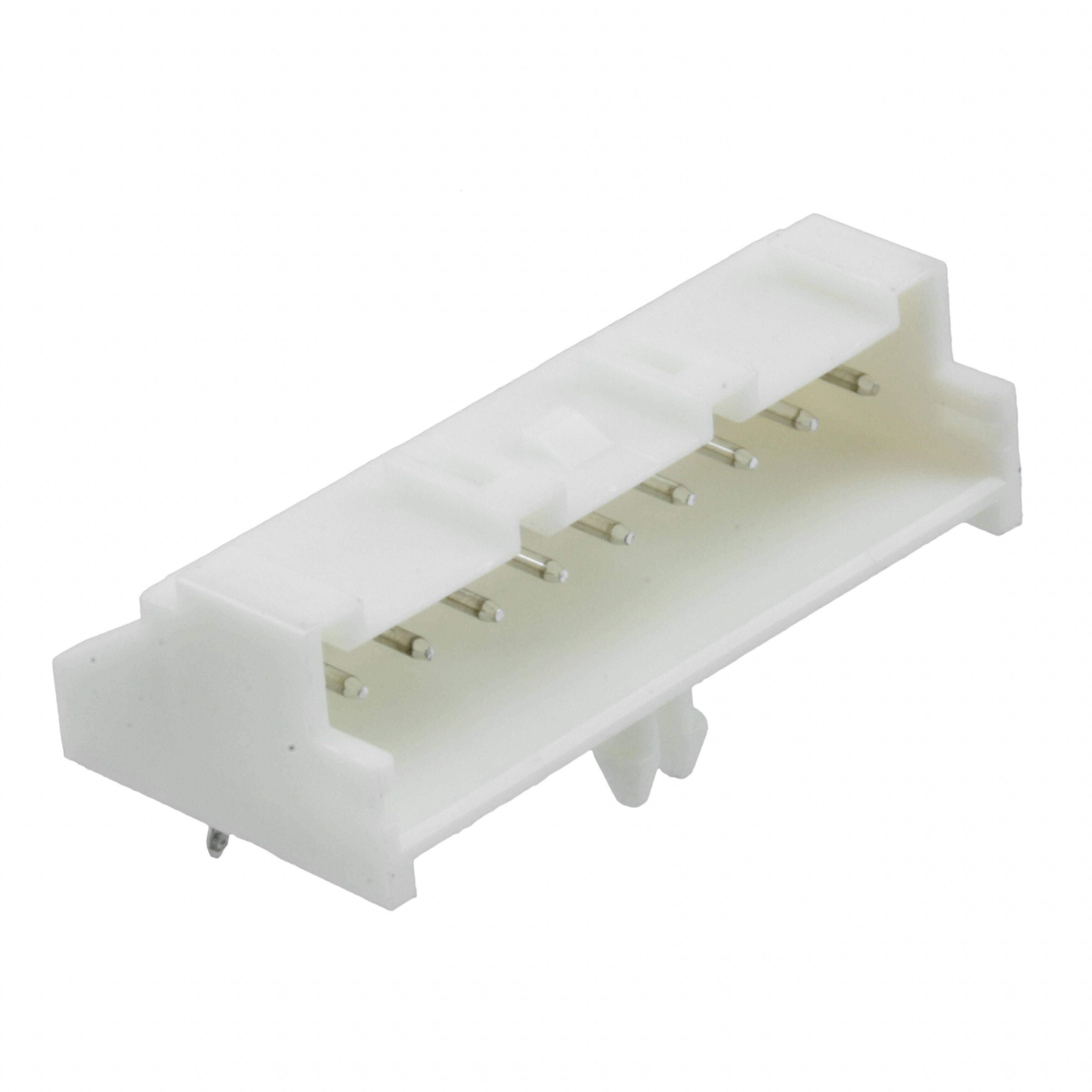

1744426-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 9 POS 2.5mm Crimp RA Cable Mount Bag/Box
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.48928
≥100 USD $0.368773
≥500 USD $0.305254
≥1000 USD $0.270424
≥3000 USD $0.253554
Inventory: 3626
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length - Tail 3.2mm
Contact Finish Thickness - Mating 2.032μm
Plating Thickness 2.032μm
Length 34.925mm
Height 7.6mm
Technical
Mating Retention With
Circuit Application Power
Contact Current Rating 4.5A
Sealable No
Wire/Cable Type Discrete
Plating Tin
ELV Compliant
Operating Supply Voltage 250V
Housing Color White
Contact Length - Mating 0.141 3.60mm
Contact Finish - Post Tin
Number of Contacts 9
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Insulation Color White
Pitch - Mating 0.098 2.50mm
Current Rating 4.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.299 7.60mm
Orientation Right Angle
Pitch 2.5mm
Current Rating (Amps) 4.2A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 250VAC
Number of Rows 1
Applications General Purpose, Industrial, Lighting
Color White
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 9
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Economy Power 2.5
Published 2011
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
PCB Mount Alignment With
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
