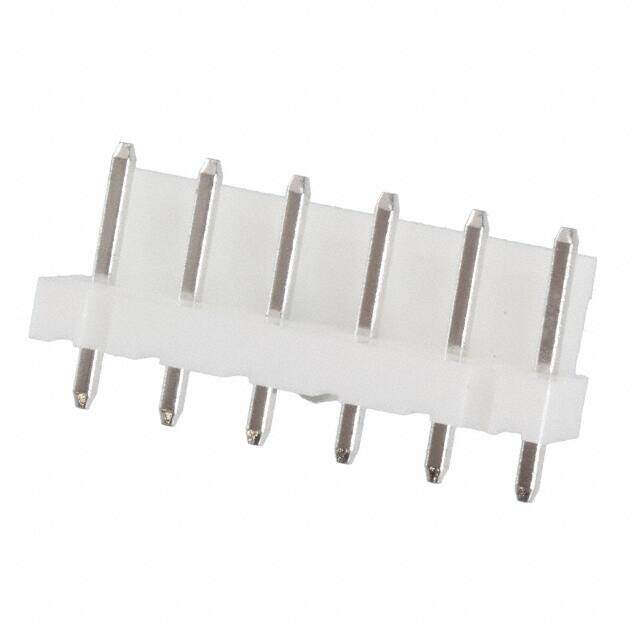

1744037-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Power to the Board 06P EC PWR.200 CL HDR ASSY VRT
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.484
≥100 USD $0.402952
≥500 USD $0.344203
≥1000 USD $0.30169
≥3000 USD $0.267274
Inventory: 3088
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 63μm
Contact Finish Thickness - Post 120.0μin 3.05μm
Contact Finish Thickness - Mating 120.0μin 3.05μm
Plating Thickness 120μm
Width 8.2042mm
Length 28.00096mm
Height 10.89914mm
Technical
Contact Retention Without
Number of Power Positions 6
Circuit Application Power
Contact Current Rating 8A
Sealable No
Max Voltage Rating (AC) 250V
ELV Compliant
Contact Resistance 20mOhm
Overall Contact Length 0.575 14.60mm
Operating Supply Voltage 250V
Housing Color Natural
Contact Length - Mating 0.303 7.70mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.146 3.70mm
Pitch - Mating 0.200 5.08mm
Current Rating 8A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.126 3.20mm
Depth 8.52mm
Orientation Vertical
Current Rating (Amps) 7.5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 250VAC
Number of Rows 1
Applications General Purpose, Industrial, Lighting
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Economy Power
Published 2008
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 25 Weeks
