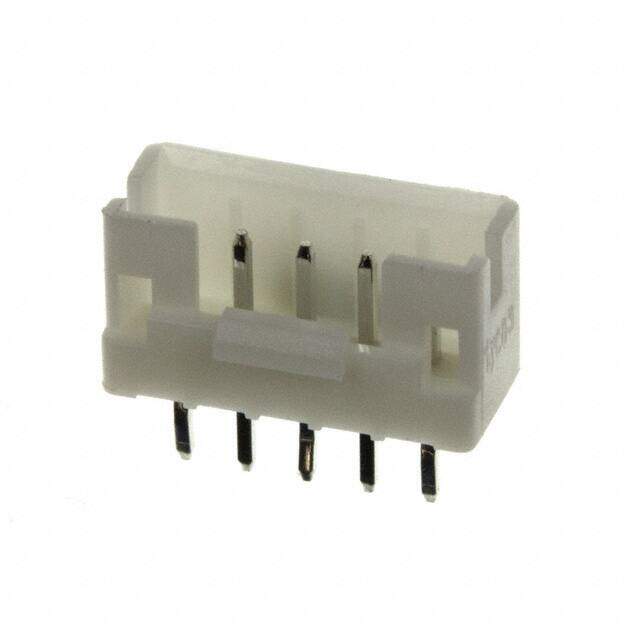

1735446-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 5POS 2MM
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
≥10 USD $0.1452
≥100 USD $0.112561
≥500 USD $0.106075
≥1000 USD $0.100522
≥3000 USD $0.084313
Inventory: 7876
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6mm
Length - Tail 3.4mm
Plating Thickness 2.03μm
Width 4.7mm
Length 12mm
Height 6.0706mm
Technical
Mating Post Length 3.3274mm
Mating Retention With
Contact Current Rating 3A
Sealable No
Wire/Cable Gauge 30 AWG
Wire/Cable Type Discrete
ELV Compliant
Operating Supply Voltage 250V
Lead Length 3.4036mm
Housing Color Natural
UL Flammability Code 94V-0
Contact Gender Male
Contact Length - Mating 0.132 3.35mm
Shrouding Shrouded - 3 Wall
Contact Length - Post 0.134 3.40mm
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.239 6.07mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 5
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series High Performance Interconnect (HPI)
Published 2009
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
PCB Mount Alignment Without
PCB Mounting Orientation Vertical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 13 Weeks
