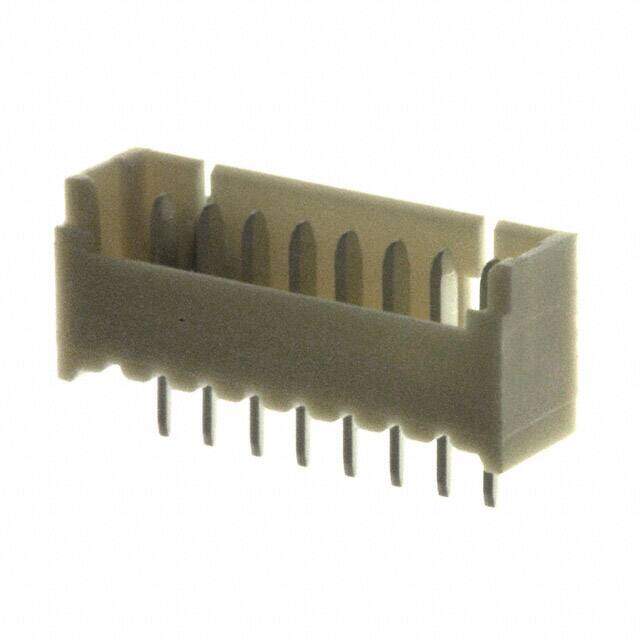

1734598-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 8POS 1.25MM VERT T/H
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.521233
≥100 USD $0.455488
≥500 USD $0.428798
Inventory: 1488
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length - Tail 1.7018mm
Contact Finish Thickness - Mating 120.0μin 3.05μm
Width 3.2mm
Length 11.7475mm
Height 4.699mm
Technical
Mating Retention Without
Contact Current Rating 800mA
Sealable No
Wire/Cable Gauge 28 AWG
Wire/Cable Type Discrete
Plating Tin
ELV Compliant
Operating Supply Voltage 100V
Lead Length 1.7018mm
Housing Color Natural
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 8
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.067 1.70mm
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Current Rating 800mA
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.185 4.70mm
Orientation Vertical
Pitch 1.2446mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Tin
Voltage - Rated 100VAC
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Color Natural
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series High Performance Interconnect (HPI)
Published 2009
Packaging Tube
Operating Temperature -25°C~85°C
Physical
PCB Mount Alignment Without
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Insulation Material Polyamide (PA9T), Nylon 9T, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Nickel, Tin
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 11 Weeks
