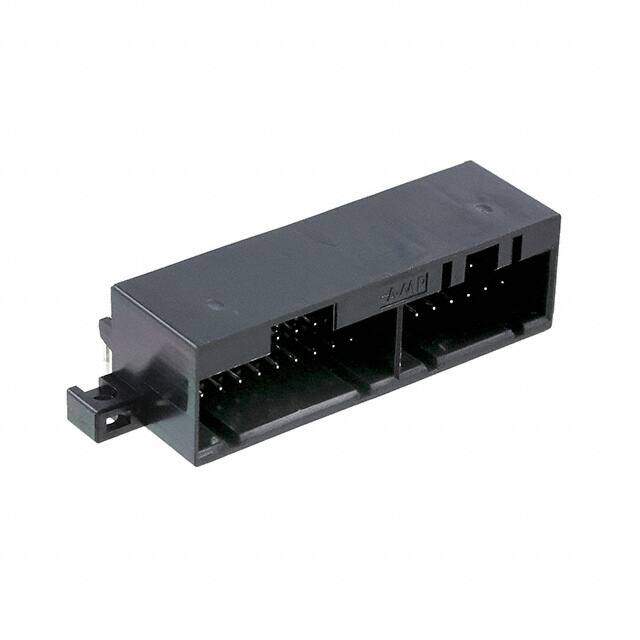

172023-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Automotive Connectors DLI 36POS CAP ASSY H TIN
PDF
/
Buying Options
Total Price: USD $9.13
Unit Price: USD $9.1256
≥1 USD $9.1256
≥10 USD $7.72875
≥100 USD $7.16115
≥500 USD $7.117493
≥1000 USD $6.85549
Inventory: 1489
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Rectangular
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Operating Temperature -30°C~105°C
Packaging Tray
Published 2010
Series DLI (Dual Line Interlock)
Feature Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Male Pin, Receptacle
Number of Positions 36
Color Black
Applications General Purpose
Number of Rows 2
Voltage - Rated 250VAC 350VDC
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 3mm
Orientation Right Angle
Depth 24.6mm
Insulation Height 0.713 18.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.181 (4.60mm)
Contact Length - Post 0.157 4.00mm
Shrouding Shrouded - 4 Wall
Number of Contacts 36
Contact Finish - Post Tin
Contact Length - Mating 0.335 8.51mm
Housing Color Black
Dimensions
Length 74mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
