171826-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

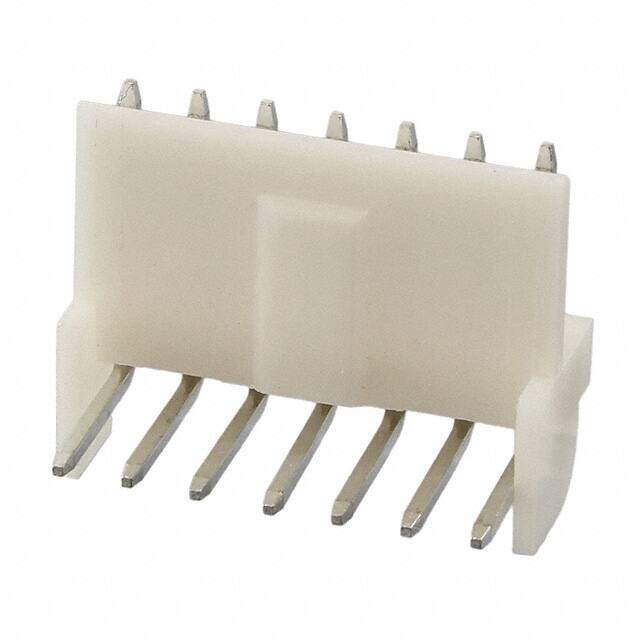

Headers & Wire Housings H-TYPE E.I.S.CONN. 7P ASSY
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.33968
≥100 USD $0.255587
≥500 USD $0.24999
Inventory: 14243
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 7
Max Operating Temperature 95°C
Min Operating Temperature -20°C
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC 350VDC
Additional Feature AMP
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) 2A
Orientation Horizontal
Terminal Pitch 2.5mm
Depth 13.5mm
Insulation Height 0.264 6.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3.5A
Pitch - Mating 0.098 2.50mm
Approval Agency UL
Contact Length - Post 0.142 3.60mm
Shrouding Shrouded - 1 Wall
Contact Length - Mating 0.295 7.49mm
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Natural
Operating Supply Voltage 250V
ELV Compliant
Plating Nickel
Sealable No
Contact Current Rating 3.5A
Mating Retention With
Mating Post Length 7.5mm
Packaging Bulk
Published 1999
Series EI
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Dimensions
Height 6.7056mm
Length 17.5006mm
Plating Thickness 800 nm
Contact Finish Thickness - Mating 31.5μin 0.80μm
Contact Finish Thickness - Post 31.5μin 0.80μm
Length - Tail 3.6068mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
PCB Mount Alignment Without
