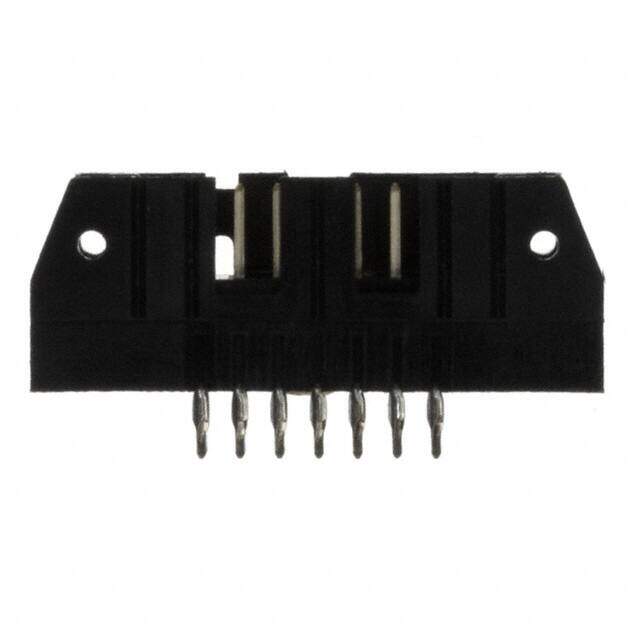

1658694-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 14POS .100 GOLD
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.2176
≥1 USD $2.2176
≥10 USD $1.947554
≥100 USD $1.776614
Inventory: 4174
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Housing Material Nylon
PCB Mount Retention With
Technical
Operating Temperature -65°C~105°C
Packaging Bulk
Published 2009
Series AMP-Latch
JESD-609 Code e3
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 14
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold or Gold-Palladium
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A per Contact
Orientation Vertical
Depth 8.53mm
Insulation Height 0.549 13.94mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.174 4.42mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.336 inch
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Lead Length 4.42mm
Overall Contact Length 0.703 17.86mm
Insulation Resistance 5GOhm
Mating Contact Pitch 0.1 inch
ELV Compliant
Polarization Key DUAL POLARIZED
Contact Current Rating 1A
Circuit Application Signal
Mating Connector Lock Without
Shrouded End Dimension 3.81 mm
Dimensions
Height 13.97mm
Length 37.084mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
PCB Thickness 2.032mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
