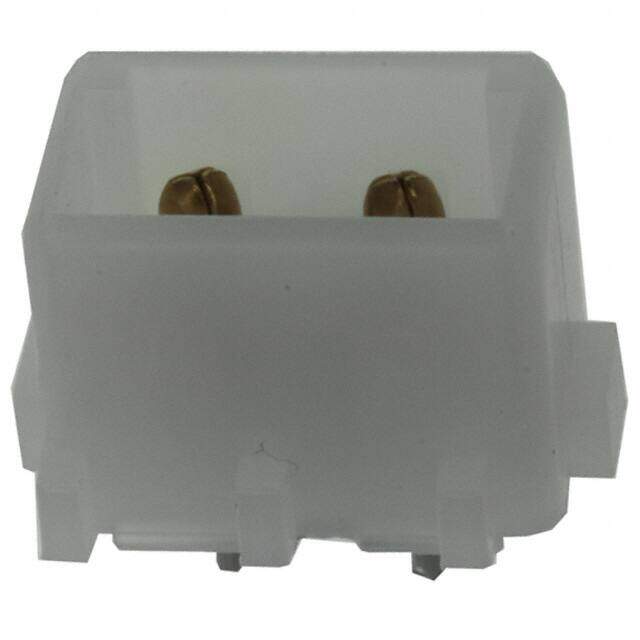

1586512-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Bag
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.4256
≥100 USD $1.271072
≥500 USD $1.137682
≥1000 USD $1.018292
≥3000 USD $0.912947
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2005
Series Commercial MATE-N-LOK
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Applications General Purpose
Number of Rows 1
Gender Male
Voltage - Rated 250VAC
Fastening Type Detent Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Vertical
Insulation Height 0.375 9.53mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 13A
Pitch - Mating 0.200 5.08mm
Insulation Color Natural
Approval Agency CSA
Contact Length - Post 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Lead Pitch 5.08mm
Number of Contacts 2
Contact Finish - Post Tin
Contact Length - Mating 0.181 4.60mm
Empty Shell NO
Operating Supply Voltage 250V
ELV Compliant
Max Voltage Rating (AC) 250V
Max Voltage Rating (DC) 250V
Sealable No
Contact Current Rating 12A
Circuit Application Power
Contact Retention Without
Dimensions
Length 13.1mm
Width 8.38mm
Plating Thickness 1.18μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
PCB Thickness 62μm
Compliance
Material Flammability Rating UL94 V-2
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
