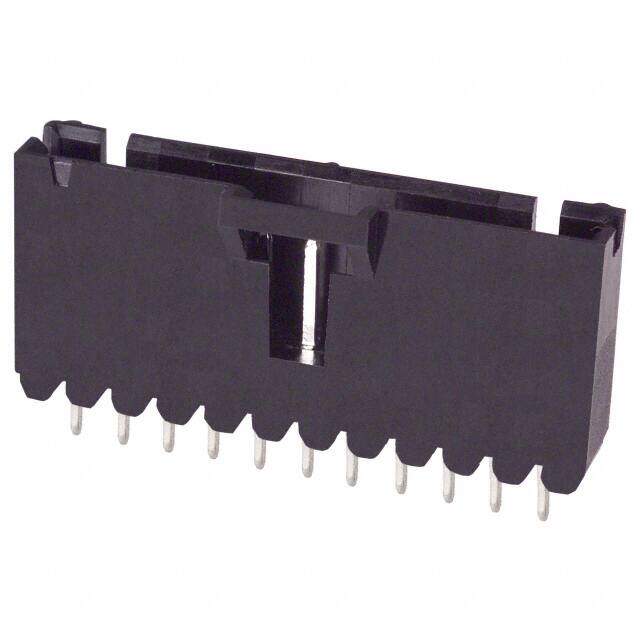

147969-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 11POS VERT .100 TIN
PDF
/
Inventory: 1327
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Thermoplastic
PCB Mount Alignment Without
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2006
Series AMPMODU MTE
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 11
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
HTS Code 8536.69.40.40
Fastening Type Latch Holder
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Orientation Vertical
Insulation Height 0.535 13.60mm
Style Board to Board or Cable
Number of Positions Loaded 10
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.230 5.84mm
Row Spacing 2.54 mm
ELV Non-Compliant
Contact Current Rating 3A
Mating Retention With
Mating Post Length 5.842mm
Dimensions
Height 13.59mm
Length 30.48mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Tail 3.3mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
