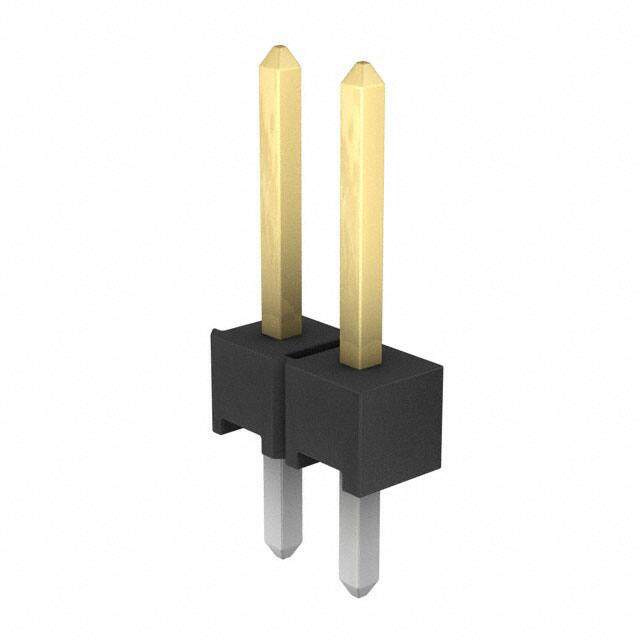

146280-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 02 MODII HDR SRST B/A .100CL
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.35112
≥100 USD $0.292864
≥500 USD $0.24897
≥1000 USD $0.218205
≥3000 USD $0.194779
Inventory: 19132
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6002mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Length 4.67mm
Technical
High Speed Serial Data Connector No
High Temperature Housing Yes
Mating Post Length 5.842mm
ELV Non-Compliant
Row Spacing 2.54 mm
Insulation Resistance 5000000000Ohm
Overall Contact Length 0.440 11.18mm
Lead Length 3.048mm
UL Flammability Code 94V-0
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin-Lead
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.090 2.29mm
Depth 2.34mm
Orientation Vertical
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 1
Number of Positions 2
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e0
Series AMPMODU Mod II
Published 2009
Packaging Bulk
Operating Temperature -65°C~105°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 17 Weeks
Alternative Model
