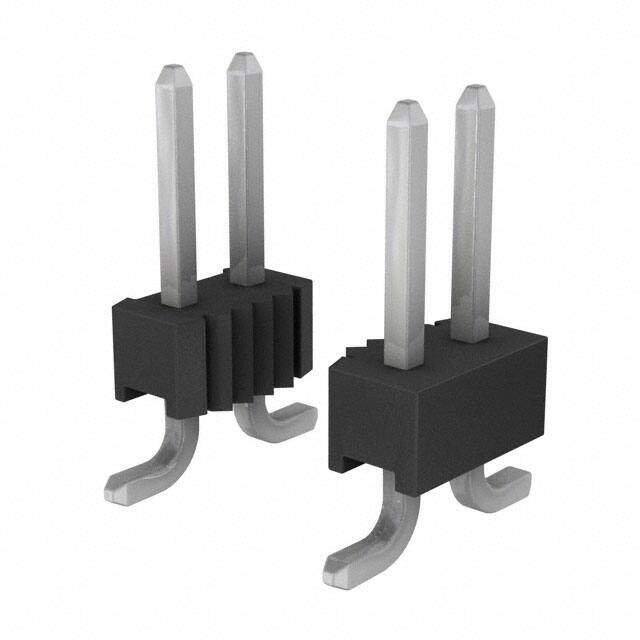

146135-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 3939
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Lead, Nickel, Tin
Mount Through Hole
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Thermoplastic
Technical
Operating Temperature -65°C~125°C
Packaging Tube
Published 2012
Series AMPMODU Mod II
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Breakaway
Number of Positions 16
Number of Rows 2
Gender Male
Voltage - Rated 30VAC
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 16
Orientation Vertical
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Body Length or Diameter 0.784 inch
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.320 8.13mm
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Lead Length 2.29mm
Body Depth 0.09 inch
Operating Supply Voltage 30V
Rated Current (Signal) 2A
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
ELV Non-Compliant
Dielectric Withstanding Voltage 750VAC V
Withdrawl Force-Min .417 N
Contact Current Rating 3A
Mating Post Length 8.128mm
High Speed Serial Data Connector No
High Temperature Compatible Yes
Dimensions
Plating Thickness 100μin
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
PCB Thickness 1.5748mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
