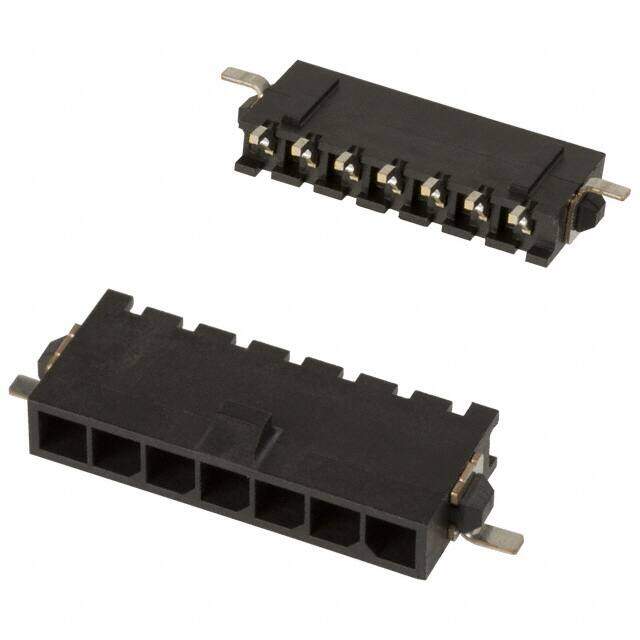

1445100-7 image
Favorite
1445100-7 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Pin & Socket Connectors HDR ASSY 7 POS R/A SINGLE ROW 30 AU
PDF
/
Inventory: 6801
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Width 11.2mm
Length 25mm
Height 3.86mm

Technical

ELV Non-Compliant
Housing Color Black
Contact Finish - Post Tin-Lead
Number of Contacts 7
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.152 3.85mm
Orientation Right Angle
Pitch 3mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 1
Applications General Purpose
Color Black
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Solder Retention
Series Micro MATE-N-LOK
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 11 Weeks
