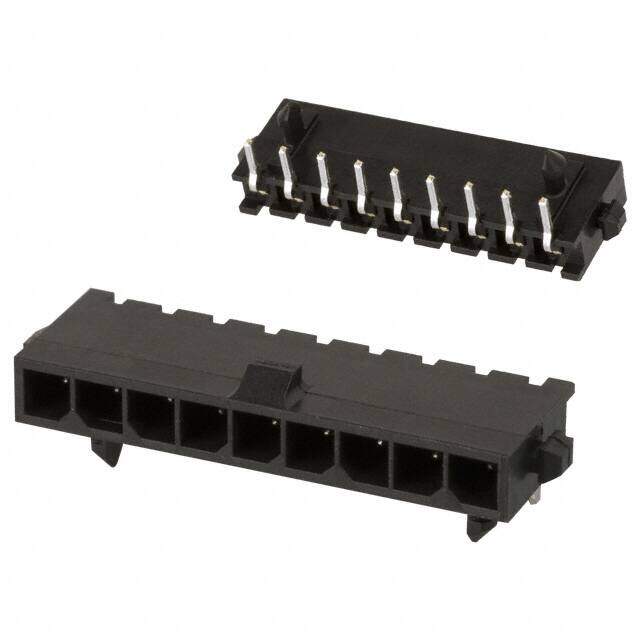

1445098-9
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW
PDF
/
Inventory: 7928
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2008
Series Micro MATE-N-LOK
JESD-609 Code e0
Feature Board Lock
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 9
Applications General Purpose
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Right Angle
Insulation Height 0.152 3.85mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Lead Pitch 3mm
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Body Breadth 0.223 inch
Housing Color Black
Lead Length 3.18mm
Empty Shell NO
ELV Non-Compliant
Polarization Key POLARIZED HOUSING
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
