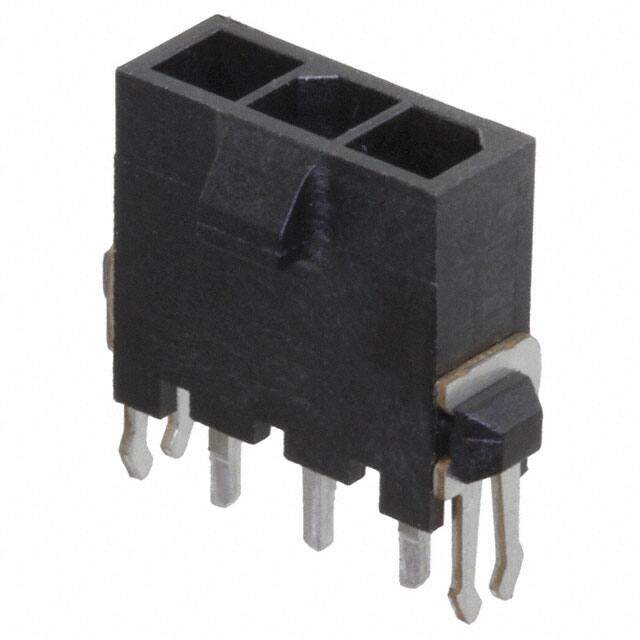

1445094-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW
PDF
/
Inventory: 7624
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 13.14mm
Technical
Number of Ports 1
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Lead Length 3.18mm
Housing Color Black
Contact Finish - Post Tin-Lead
Number of Contacts 3
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Depth 5.67mm
Orientation Straight
Pitch 3mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 1
Applications General Purpose
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 3
Connector Type Header
Termination Solder
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Lock
Series Micro MATE-N-LOK
Published 2002
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 13 Weeks
