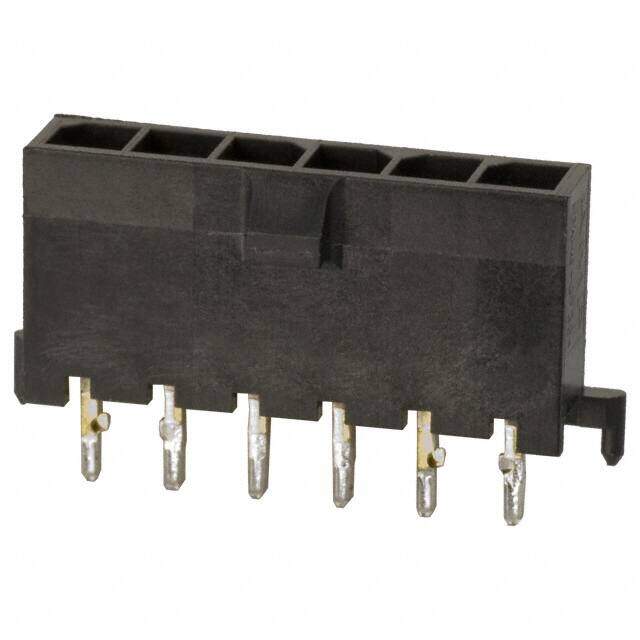

1445093-6
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 3MM 6POS GOLD T/H
PDF
/
Inventory: 1499
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2011
Series Micro MATE-N-LOK
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Applications General Purpose
Number of Ports 1
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Lead Length 3.18mm
Housing Color Black
Contact Finish - Post Tin-Lead
Number of Contacts 6
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Depth 5.67mm
Orientation Straight
Pitch 3mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 1
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 19mm
